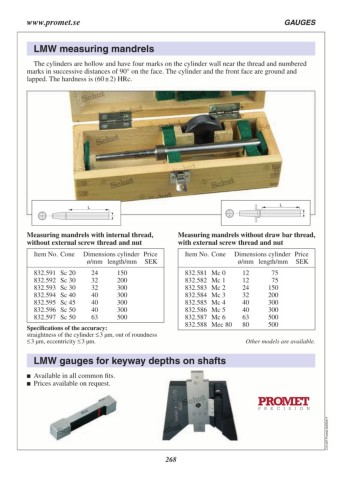

P. 268
GAUGES www.promet.se
LMW measuring mandrels
The cylinders are hollow and have four marks on the cylinder wall near the thread and numbered
marks in successive distances of 90° on the face. The cylinder and the front face are ground and
lapped. The hardness is (60 ± 2) HRc.
LL
Measuring mandrels with internal thread, Measuring mandrels without draw bar thread,
without external screw thread and nut with external screw thread and nut
Item No. Cone Dimensions cylinder Price Item No. Cone Dimensions cylinder Price
ø/mm length/mm SEK ø/mm length/mm SEK
832.591 Sc 20 24 150 832.581 Mc 0 12 75
832.592 Sc 30 32 200 832.582 Mc 1 12 75
832.593 Sc 30 32 300 832.583 Mc 2 24 150
832.594 Sc 40 40 300 832.584 Mc 3 32 200
832.595 Sc 45 40 300 832.585 Mc 4 40 300
832.596 Sc 50 40 300 832.586 Mc 5 40 300
832.597 Sc 50 63 500 832.587 Mc 6 63 500
832.588 Mec 80 80 500
Specifications of the accuracy:
straightness of the cylinder ≤ 3 µm, out of roundness Other models are available.
≤ 3 µm, eccentricity ≤ 3 µm.
LMW gauges for keyway depths on shafts
Available in all common fits.
Prices available on request.
C12.207.Promet.20240517
