www.promet.se GAUGES

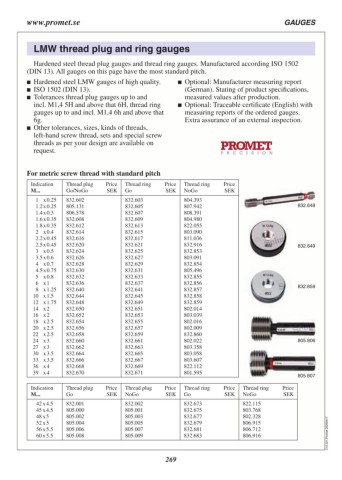

Thread gauges LMW thread plug and ring gauges

The prices of the thread gauges apply to the Hardened steel thread plug gauges (up to
following tolerances: M39: Go + NoGo, from M42: Go and NoGo
separate) and thread ring gauges (Go or NoGo)
Kind of thread Tolerances for metric screw thread (ISO) with coarse pitch.
Manufactured according ISO 1502 (DIN 13).
Thread plug Thread ring

gauge gauge

Metric thread according Indication Price SEK Price SEK
M... Thread plug Thread ring
ISO 1502 (DIN 13)
up to and incl. M1.4 5H 6h 1 x 0.25
larger than M1.4 6H 6g (standard) 1.2 x 0.25
1.4 x 0.3
4h and 6e 1.6 x 0.35
1.8 x 0.35
Fixing pipe center A 2 x 0.4
thread 2.2 x 0.45
DIN EN ISO 228 2.5 x 0.45
3 x 0.5
Trapezoidal thread 7H 7e 3.5 x 0.6
DIN 103 4 x 0.7
4.5 x 0.75
Other tolerances, sizes and kinds of threads 5 x 0.8 792.00 660.00
are available on request; also available are special 6 x 1 768.00 612.00
screw threads as per your design. Left-hand screw 8 x 1.25 732.00 600.00
thread: price on request. 10 x 1.5 732.00 600.00
12 x 1.75 720.00 600.00
Measuring reports 14 x 2 696.00 600.00
16 x 2 720.00 612.00
For all gauges also measuring reports can be 18 x 2.5 768.00 720.00
ordered. 20 x 2.5 816.00 828.00
 Manufacturer measuring report (German) 22 x 2.5 888.00 912.00
24 x 3 948.00 1,020.00
per gauge. Stating of product specifications, 27 x 3 1,020.00 1,152.00
measured values after production, used 30 x 3.5 1,092.00 1,284.00
traceable measuring devices, measuring 33 x 3.5 1,152.00 1,404.00
inaccuracy and measuring date. A favourable 36 x 4 1,296.00 1,500.00
choice when your quality system does not 39 x 4 1,452.00 1,668.00
require traceable certificates. Indication 1,596.00 1,836.00
 Traceable certificate (Dutch) with mea­suring M... 1,740.00 2,004.00
reports of the ordered gauges. Besides stating 1,884.00 2,160.00
of the measured values the extra assurance of 2,076.00 2,352.00
an external inspection. Thread plug Thread
Go NoGo
ring

42 x 4.5 1,260.00 1,128.00 2,544.00
45 x 4.5 1,356.00 1,224.00 2,700.00
48 x 5 1,464.00 1,332.00 2,856.00
52 x 5 1,560.00 1,416.00 3,072.00
56 x 5.5 1,728.00 1,560.00 3,288.00
60 x 5.5 1,836.00 1,668.00 3,516.00

Also most common sets available.

C12.208.Promet.20240517
