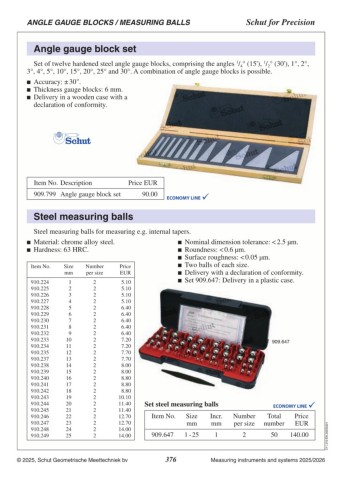

Page 376 - Schut Catalog
P. 376
ANGLE GAUGE BLOCKS / MEASURING BALLS Schut for Precision
Angle gauge block set
Set of twelve hardened steel angle gauge blocks, comprising the angles 1/4° (15'), 1/2° (30'), 1°, 2°,
3°, 4°, 5°, 10°, 15°, 20°, 25° and 30°. A combination of angle gauge blocks is possible.
Accuracy: ± 30".
Thickness gauge blocks: 6 mm.
Delivery in a wooden case with a
declaration of conformity.
Item No. Description Price EUR
909.799 Angle gauge block set 90.00
Steel measuring balls
Steel measuring balls for measuring e.g. internal tapers.
Material: chrome alloy steel. Nominal dimension tolerance: < 2.5 µm.
Hardness: 63 HRC. Roundness: < 0.6 µm.
Surface roughness: < 0.05 µm.
Item No. Size Number Price Two balls of each size.
mm per size EUR Delivery with a declaration of conformity.
910.224 Set 909.647: Delivery in a plastic case.
910.225 1 2 5.10 C11.212.EN.20250321
910.226 2 2 5.10 909.647
910.227 3 2 5.10
910.228 4 2 5.10 Set steel measuring balls
910.229 5 2 6.40 Item No. Size Incr. Number Total Price
910.230 6 2 6.40 mm mm per size number EUR
910.231 7 2 6.40 909.647 1 - 25 1 2 50 140.00
910.232 8 2 6.40
910.233 9 2 6.40
910.234 10 2 7.20
910.235 11 2 7.20
910.237 12 2 7.70
910.238 13 2 7.70
910.239 14 2 8.00
910.240 15 2 8.00
910.241 16 2 8.80
910.242 17 2 8.80
910.243 18 2 8.80
910.244 19 2 10.10
910.245 20 2 11.40
910.246 21 2 11.40
910.247 22 2 12.70
910.248 23 2 12.70
910.249 24 2 14.00
25 2 14.00
© 2025, Schut Geometrische Meettechniek bv 376 Measuring instruments and systems 2025/2026
