DIAL INDICATOR STANDS Schut for Precision
Fisso Strato Line and Strato µ‑Line dial indicator stands
These dial indicator stands have a modern design with light metal arm parts in one piece, which,
together with the three hinge points, are fixated by means of a mechanical clamping device. Because
this is done with one on/off switch, the bases can be positioned easily and precisely.
Also available are the small dial indicator stands with an arm length of 130 mm – especially useful
for places with confined space.
Fine adjustment: with clamping shaft ø 8 mm (for dial indicators and 837.297
probes) and dovetail joint (for lever-type dial test indicators).
Dial indicator not included.

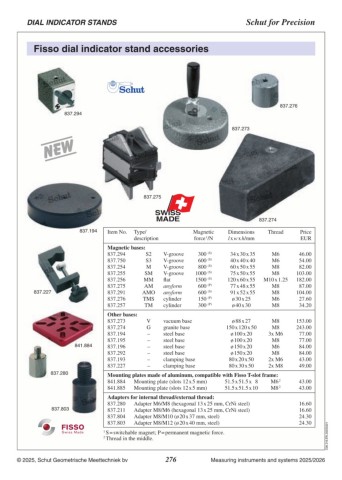

Various bases, fine adjustments and other accessories available;
see “Fisso dial indicator stand accessories”.
The Strato µ-Line models are equipped with a precision
fine adjustment.
Complete stands (incl. base and fine adjustment)
Item No. Arm Base Magnetic Price
length/mm type 1 force/N EUR
837.297 4 130 S2 300 219.00
837.270 130 TMS 150 200.00
837.288 130 C 2 – 163.00
839.455 3 130 S3 600 434.00
837.242 5 200 M 800 278.00
837.243 200 TM 300 245.00
837.244 200 AM 600 286.00
837.289 200 AMO 600 299.00
837.239 200 V – 297.00
839.456 3,5 200 M 800 474.00
837.240 5 280 M 800 360.00
837.271 5 280 SM 1000 380.00
837.241 6 280 V – 429.00
837.261 6 280 G – 514.00
839.457 3,5 287 M 800 562.00
839.873 3,6 287 V – 631.00
839.874 3,5 287 SM 1000 582.00
837.230 3 330 SM 1000 615.00
837.231 3 330 G – 750.00
1 For an extensive description of the base types see “Fisso dial 837.241
indicator stand accessories”.
2 Long stem, ø 10 x 40 mm, thread M6
(not separately available).
3 With µ‑Line precision fine adjustment (837.204).
4 Optional available plastic carrying case (C1: 841.580).
5 Optional available plastic carrying case (C2: 841.581).
6 Optional available plastic carrying case (C3: 841.582).
841.581 841.582 837.288 C06.207.EN.20250106
