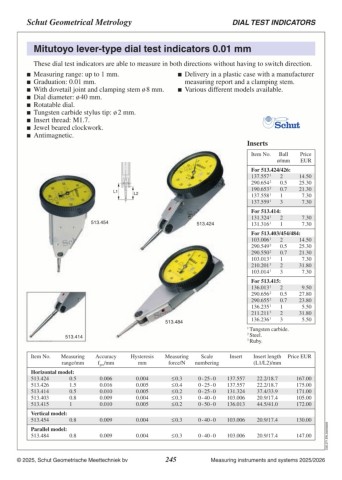

Schut Geometrical Metrology DIAL TEST INDICATORS
Mitutoyo lever-type dial test indicators 0.01 mm
These dial test indicators are able to measure in both directions without having to switch direction.
Measuring range: up to 1 mm. Delivery in a plastic case with a manufacturer
Graduation: 0.01 mm. measuring report and a clamping stem.
With dovetail joint and clamping stem ø 8 mm.
Dial diameter: ø 40 mm. Various different models available.
Rotatable dial. Inserts
Tungsten carbide stylus tip: ø 2 mm.
Insert thread: M1.7.
Jewel beared clockwork.
Antimagnetic.
Item No. Ball Price
ø/mm EUR
L1 L2 For 513.424/426: 14.50
513.454 137.557 1 2 25.30
290.654 2 0.5 21.30
190.653 2 0.7 7.30
137.558 1 1 7.30
137.559 1 3
513.424 For 513.414: 7.30
131.324 1 2 7.30
131.316 1 1
For 513.403/454/484:
103.006 1 2 14.50
290.549 2 0.5 25.30
290.550 2 0.7 21.30
103.013 1 1 7.30
210.201 3 2 31.80
103.014 1 3 7.30
513.484 For 513.415: 9.50
136.013 1 2 27.80
290.656 2 0.5 23.80
290.655 2 0.7 5.50
136.235 1 1 31.80
211.211 3 2 5.50
136.236 1 3
513.414 1 Tungsten carbide.
2 Steel.
3 Ruby.
Item No. Measuring Accuracy Hysteresis Measuring Scale Insert Insert length Price EUR
range/mm fges/mm
mm force/N numbering (L1/L2)/mm
0.006
Horizontal model: 0.016 0.004 ≤ 0.3 0 - 25 - 0 137.557 22.2/18.7 167.00
513.424 0.5 0.010 0.005 ≤ 0.4 0 - 25 - 0 137.557 22.2/18.7 175.00
513.426 1.5 0.009 0.005 ≤ 0.2 0 - 25 - 0 131.324 37.4/33.9 171.00
513.414 0.5 0.010 0.004 ≤ 0.3 0 - 40 - 0 103.006 20.9/17.4 105.00
513.403 0.8 0.005 ≤ 0.2 0 - 50 - 0 136.013 44.5/41.0 172.00
513.415 1 0.009
Vertical model: 0.009 0.004 ≤ 0.3 0 - 40 - 0 103.006 20.9/17.4 130.00 C05.271.EN.20250605
513.454 0.8
Parallel model: 0.004 ≤ 0.3 0 - 40 - 0 103.006 20.9/17.4 147.00
513.484 0.8
