P. 146

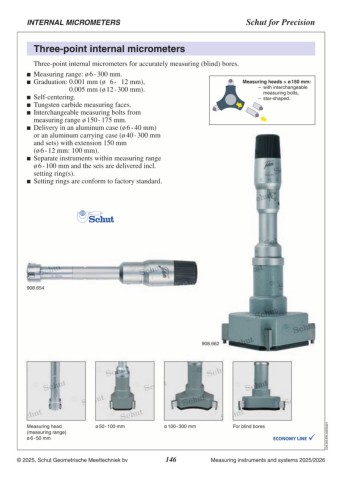

INTERNAL MICROMETERS Schut for Precision
Three-point internal micrometers
Three-point internal micrometers, with a manufacturer measuring report, for accurately measuring
(blind) bores.
Measuring range: ø 6 - 300 mm. Analog
Self-centering. Graduation: 0.001 mm (ø 6 - 12 mm),
Tungsten carbide measuring faces (measuring
0.005 mm (ø 12 - 300 mm).
range ø 6 - 12 mm: hardened steel). Digital
Separate instruments within measuring range Resolution: 0.001 mm.
mm/inch conversion.
ø 6 - 100 mm and the sets are delivered incl. On/off switch.
setting ring(s) and extension. Reset.
Setting rings are conform to factory standard. Preset.
To ø 100 mm: implementation for blind bores. Hold function.
From ø 100 mm: implementation for through Protection: IP54.
holes or blind bores. Power supply: 1 battery type V357.
Delivery in an aluminum case (ø 6 - 40 mm)
or an aluminum carrying case (ø 40 - 300 mm
and sets) with a manufacturer measuring
report.
909.811
909.832
Measuring head (measuring ø 50 - 100 mm ø 100 - 175 mm ø 175 - 300 mm
range) ø 6 - 50 mm
20 mm
For blind bores For through holes C04.318.EN.20240625
