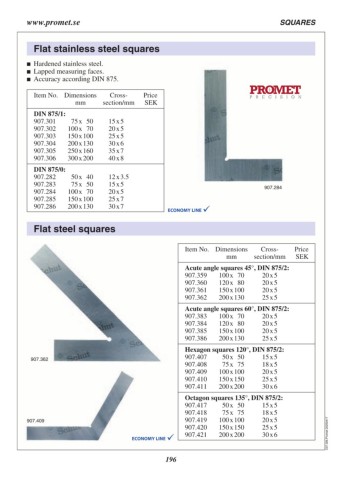

Page 196 - Schut Catalog

SQUARES www.promet.se

Flat stainless steel squares

 Hardened stainless steel.
 Lapped measuring faces.
 Accuracy according DIN 875.

Item No. Dimensions Cross- Price
mm section/mm SEK

DIN 875/1: 114.00
907.301 75 x 50 15 x 5 144.00
907.302 100 x 70 20 x 5 192.00
907.303 150 x 100 25 x 5 286.80
907.304 200 x 130 30 x 6 374.40
907.305 250 x 160 35 x 7 504.00
907.306 300 x 200 40 x 8

DIN 875/0: 169.20 907.284
907.282 50 x 40 12 x 3.5 177.60
907.283 75 x 50 15 x 5 214.80
907.284 100 x 70 20 x 5 294.00
907.285 150 x 100 25 x 7 381.60
907.286 200 x 130 30 x 7

Flat steel squares

Item No. Dimensions Cross- Price
mm section/mm SEK

Acute angle squares 45°, DIN 875/2:
907.359 100 x 70 20 x 5 138.00
907.360 120 x 80 20 x 5 147.60
907.361 150 x 100 20 x 5 189.60
907.362 200 x 130 25 x 5 208.80

Acute angle squares 60°, DIN 875/2:
907.383 100 x 70 20 x 5 138.00
907.384 120 x 80 20 x 5 157.20
907.385 150 x 100 20 x 5 181.20
907.386 200 x 130 25 x 5 211.20

907.362 Hexagon squares 120°, DIN 875/2: 110.40
907.409 907.407 50 x 50 15 x 5 132.00
907.408 75 x 75 18 x 5 166.80
907.409 100 x 100 20 x 5 214.80
907.410 150 x 150 25 x 5 243.60
907.411 200 x 200 30 x 6

Octagon squares 135°, DIN 875/2: 151.20 C07.306.Promet.20240517
907.417 50 x 50 15 x 5 177.60
907.418 75 x 75 18 x 5 208.80
907.419 100 x 100 20 x 5 270.00
907.420 150 x 150 25 x 5 314.40
907.421 200 x 200 30 x 6

© 2024, Schut Geometrische Meettechniek bv 196 Promet Precision 2023/2024-D
