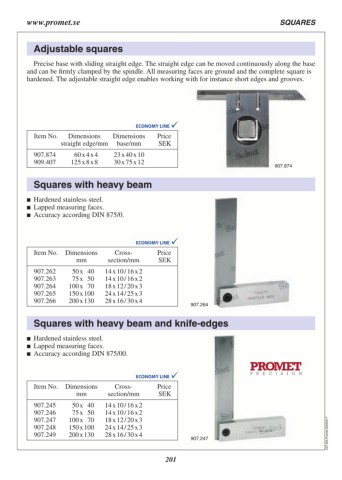

www.promet.se SQUARES

Adjustable squares

Precise base with sliding straight edge. The straight edge can be moved continuously along the base
and can be firmly clamped by the spindle. All measuring faces are ground and the complete square is
hardened. The adjustable straight edge enables working with for instance short edges and grooves.

Item No. Dimensions Dimensions Price
straight edge/mm base/mm SEK

907.874 60 x 4 x 4 23 x 40 x 10 1,068.00 907.874
909.407 125 x 8 x 8 30 x 75 x 12 2,028.00

Squares with heavy beam

 Hardened stainless steel.
 Lapped measuring faces.
 Accuracy according DIN 875/0.

Item No. Dimensions Cross- Price
mm section/mm SEK
448.80
907.262 50 x 40 14 x 10 / 16 x 2 516.00 907.264
907.263 75 x 50 14 x 10 / 16 x 2 552.00
907.264 100 x 70 18 x 12 / 20 x 3 696.00
907.265 150 x 100 24 x 14 / 25 x 3 840.00
907.266 200 x 130 28 x 16 / 30 x 4

Squares with heavy beam and knife-edges

 Hardened stainless steel.
 Lapped measuring faces.
 Accuracy according DIN 875/00.

Item No. Dimensions Cross- Price
mm section/mm SEK
356.40
907.245 50 x 40 14 x 10 / 16 x 2 398.40 907.247 C07.304.Promet.20240517
907.246 75 x 50 14 x 10 / 16 x 2 465.60
907.247 100 x 70 18 x 12 / 20 x 3 540.00
907.248 150 x 100 24 x 14 / 25 x 3 900.00
907.249 200 x 130 28 x 16 / 30 x 4
