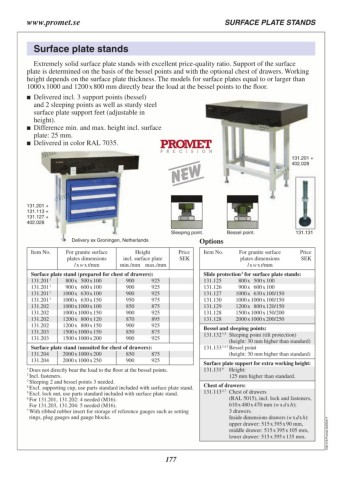

www.promet.se SURFACE PLATE STANDS

Surface plate stands

Extremely solid surface plate stands with excellent price-quality ratio. Support of the surface
plate is determined on the basis of the bessel points and has an optional slide protection and chest of
drawers. Working height depends on the surface plate thickness. The models for surface plates equal
to or larger than 1000 x 1000 mm directly bear the load at the bessel points to the floor.
 Delivered incl. support (bessel) and sleeping

points.
 Difference min. and max. height incl. surface

plate: 25 mm.
 Delivered in color RAL 7035.

131.100 +
402.028

131.101 +
131.113 +
131.108 +
402.028

Sleeping point. Bessel point. 131.117

Delivery ex Groningen, Netherlands Options

Item No. For granite surface Height Price Item No. For granite surface Price
SEK plates dimensions SEK
plates dimensions incl. surface plate
l x w x t/mm
l x w x t/mm min./mm max./mm

Surface plate stand (standard model): 880 905 6,048.00 Slide protection 2 for surface plate stands:
131.100 1 630 x 630 x 80 900 925 6,048.00 131.105 630 x 630 x 80 2,376.00
131.100 1 800 x 500 x 100 900 925 6,048.00 131.106 800 x 500 x 100 2,544.00
131.100 1 900 x 600 x 100 900 925 6,048.00 131.107 900 x 600 x 100 2,688.00
131.100 1 1000 x 630 x 100 950 975 6,048.00 131.108 1000 x 630 x 100/150 2,688.00
131.100 1 1000 x 630 x 150 850 875 7,476.00 131.109 1000 x 1000 x 100/150 2,676.00
131.104 2000 x 1000 x 200 900 925 7,476.00 131.110 1200 x 800 x 120/150 2,736.00
131.104 2000 x 1000 x 250 131.111 1500 x 1000 x 150/200 3,840.00
131.112 2000 x 1000 x 200/250 3,624.00
Surface plate stand (prepared for chest of drawers):
Bessel and sleeping points:
131.101 1 630 x 630 x 80 880 905 6,180.00
6,180.00
131.101 1 800 x 500 x 100 900 925 6,180.00 131.115 3,5 Sleeping point (tilt protection)1 76.40
6,180.00
131.101 1 900 x 600 x 100 900 925 6,180.00 (height: 30 mm higher than standard)
7,476.00
131.101 1 1000 x 630 x 100 900 925 7,476.00 131.116 3,4,5 Bessel point 176.40
7,476.00
131.101 1 1000 x 630 x 150 950 975 7,476.00 (height: 30 mm higher than standard)

131.102 1000 x 1000 x 100 850 875 Surface plate support for extra working height:

131.102 1000 x 1000 x 150 900 925 131.117 6 Height: 231.60

131.102 1200 x 800 x 120 870 895 125 mm higher than standard.

131.102 1200 x 800 x 150 900 925 Chest of drawers:

1 Does not directly bear the load to the floor at the bessel points. 131.113 2 Chest of drawers 6,192.00
2 Incl. fasteners.
3 Sleeping 2 and bessel points 3 needed. (RAL 5015), incl. fasteners,
4 Excl. brass supporting cup.
5 Excl. lock nut. 610 x 480 x 470 mm (w x d x h);
6 For 131.100, 131.101, 131.102: 4 needed.
For 131.103, 131.104: 5 needed. 3 drawers.

Inside dimensions drawers (w x d x h): C06.309.Promet.20240517

upper drawer: 515 x 395 x 90 mm,

middle drawer: 515 x 395 x 105 mm,

lower drawer: 515 x 395 x 135 mm.
