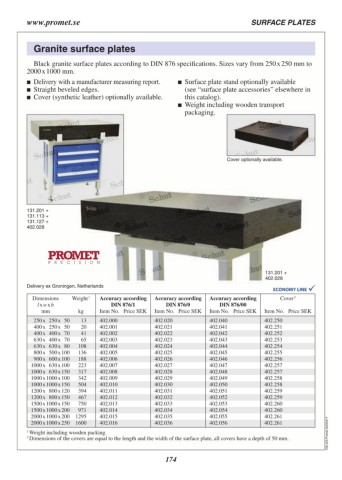

Page 174 - Schut Catalog

SURFACE PLATES www.promet.se

Granite surface plates

Black granite surface plates according to DIN 876 specifications. Sizes vary from 250 x 250 mm to
2000 x 1000 mm.

 Delivery with an inspection report.  Surface plate stand optionally available
 Straight beveled edges. (see “surface plate accessories” elsewhere in
 Cover (synthetic leather) optionally available. this catalog).

 Weight including wooden transport
packaging.

402.252

131.101 +
131.113 +
131.108 +
402.028

131.100 +
402.028

Delivery ex Groningen, Netherlands

Dimensions Weight 1 Accuracy according Accuracy according Accuracy according Cover 2
l x w x h kg DIN 876/1 DIN 876/0 DIN 876/00 Item No. Price SEK
mm
Item No. Price SEK Item No. Price SEK Item No. Price SEK

250 x 250 x 50 13 402.000 960.00 402.020 1,068.00 402.040 1,200.00 402.250 528.00 C06.217.Promet.20240517
400 x 250 x 50 20 402.001 1,320.00 402.021 1,440.00 402.041 1,620.00 402.251 588.00
400 x 400 x 70 41 402.002 2,484.00 402.022 2,748.00 402.042 2,952.00 402.252 624.00
630 x 400 x 70 65 402.003 4,284.00 402.023 4,596.00 402.043 4,920.00 402.253 768.00
630 x 630 x 80 108 402.004 6,072.00 402.024 6,516.00 402.044 6,984.00 402.254 828.00
800 x 500 x 100 136 402.005 6,732.00 402.025 7,272.00 402.045 7,848.00 402.255 972.00
900 x 600 x 100 188 402.006 8,880.00 402.026 9,600.00 402.046 10,248.00 402.256 1,044.00
1 000 x 630 x 100 223 402.007 10,956.00 402.027 12,168.00 402.047 12,996.00 402.257 1,176.00
1000 x 630 x 150 317 402.008 14,556.00 402.028 15,732.00 402.048 16,800.00 402.257 1,176.00
1000 x 1000 x 100 342 402.009 16,476.00 402.029 17,352.00 402.049 18,624.00 402.258 1,380.00
1000 x 1000 x 150 504 402.010 21,372.00 402.030 22,488.00 402.050 24,120.00 402.258 1,380.00
1200 x 800 x 120 394 402.011 18,876.00 402.031 19,908.00 402.051 21,312.00 402.259 1,524.00
1 200 x 800 x 150 467 402.012 21,708.00 402.032 22,848.00 402.052 24,480.00 402.259 1,524.00
1500 x 1000 x 150 750 402.013 34,080.00 402.033 36,000.00 402.053 39,120.00 402.260 1,944.00
1 500 x 1000 x 200 971 402.014 40,920.00 402.034 42,240.00 402.054 45,840.00 402.260 1,944.00
2 000 x 1000 x 200 1295 402.015 58,320.00 402.035 60,960.00 402.055 65,640.00 402.261 2,916.00
2 000 x 1000 x 250 1600 402.016 66,720.00 402.036 69,600.00 402.056 74,880.00 402.261 2,916.00

1 Weight including wooden packing.
2 Dimensions of the covers are equal to the length and the width of the surface plate, all covers have a depth of 50 mm.
