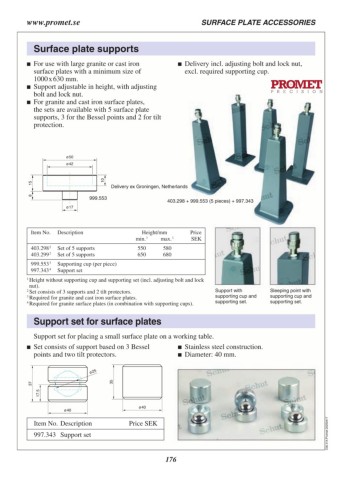

Page 176 - Schut Catalog

SURFACE PLATE ACCESSORIES www.promet.se

Surface plate supports  Delivery incl. adjusting bolt and lock nut,
excl. required supporting cup.
 For use with large granite or cast iron
surface plates with a minimum size of
1000 x 630 mm.

 Support adjustable in height, with adjusting
bolt and lock nut.

 For granite and cast iron surface plates it is
advisable to use 5 surface plate supports, 3
for the Bessel points and 2 for tilt protection
or a set of 5 supports, consisting of 3 surface
plate supports and 2 sleeping points.

ø50
ø42

8 15 Delivery ex Groningen, Netherlands
10
999.553
403.298 + 999.553 (5 pieces) + 997.343
ø17

Item No. Description Height/mm Price
min. 1 max. 1 SEK

403.253 Surface plate support 550 580 3,168.00
403.254 Surface plate support 650 680 3,696.00
403.298 2 Set of 5 supports 550 580 11,904.00
403.299 2 Set of 5 supports 650 680 13,908.00

999.553 3 Supporting cup (per piece) 336.00
997.343 4 Support set 1,044.00

1 Height without supporting cup and supporting set (incl. adjusting bolt and lock Support with Sleeping point with
nut). supporting cup and supporting cup and
2 Set consists of 3 supports and 2 tilt protectors. supporting set. supporting set.
3 Required for granite and cast iron surface plates.
4 Required for granite surface plates (in combination with supporting cups).

Support set for surface plates

Support set for placing a small surface plate on a working table.

 Set consists of support based on 3 Bessel  Stainless steel construction.
points and two tilt protectors.  Diameter: 40 mm.

ø25

37
17.5

35

ø40 ø40 C06.314.Promet.20240517

Item No. Description Price SEK
997.343 Support set 1,044.00

© 2024, Schut Geometrische Meettechniek bv 176 Promet Precision 2023/2024-D
