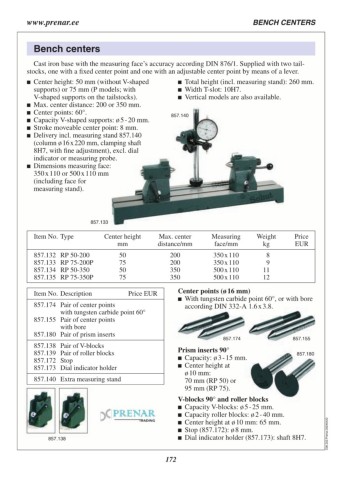

www.prenar.ee BENCH CENTERS

Bench centers

Cast iron base with the measuring face’s accuracy according DIN 876/1. Supplied with two tail­
stocks, one with a fixed center point and one with an adjustable center point by means of a lever.

 Center height: 50 mm (without V‑shaped  Total height (incl. measuring stand): 260 mm.
supports) or 75 mm (P models; with  Width T‑slot: 10H7.
V‑shaped supports on the tailstocks).  Vertical models are also available.

 Max. center distance: 200 or 350 mm. 857.140
 Center points: 60°.
 Capacity V‑shaped supports: ø 5 - 20 mm.
 Stroke moveable center point: 8 mm.
 Delivery incl. measuring stand 857.140

(column ø 16 x 220 mm, clamping shaft
8H7, with fine adjustment), excl. dial
indicator or measuring probe.
 Dimensions measuring face:
350 x 110 or 500 x 110 mm
(including face for
measuring stand).

857.133

Item No. Type Center height Max. center Measuring Weight Price
mm distance/mm face/mm kg EUR

857.132 RP 50‑200 50 200 350 x 110 8
857.133 RP 75‑200P 75 200 350 x 110 9
857.134 RP 50‑350 50 350 500 x 110 11
857.135 RP 75‑350P 75 350 500 x 110 12

Item No. Description Price EUR Center points (ø 16 mm)
 With tungsten carbide point 60°, or with bore
857.174 Pair of center points
with tungsten carbide point 60° according DIN 332‑A 1.6 x 3.8.

857.155 Pair of center points 857.174 857.155
with bore

857.180 Pair of prism inserts

857.138 Pair of V‑blocks Prism inserts 90° 857.180
857.139 Pair of roller blocks  Capacity: ø 3 - 15 mm.
857.172 Stop  Center height at
857.173 Dial indicator holder
ø 10 mm:
857.140 Extra measuring stand 70 mm (RP 50) or
95 mm (RP 75).

857.138 V‑blocks 90° and roller blocks C06.222.Prenar.20240422
 Capacity V‑blocks: ø 5 - 25 mm.
 Capacity roller blocks: ø 2 - 40 mm.
 Center height at ø 10 mm: 65 mm.
 Stop (857.172): ø 8 mm.
 Dial indicator holder (857.173): shaft 8H7.
