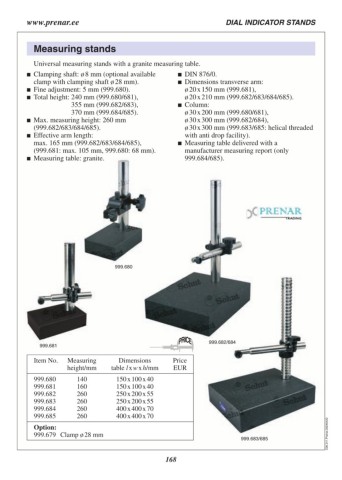

Page 168 - Schut Catalog

www.prenar.ee DIAL INDICATOR STANDS

Measuring stands

Universal measuring stands with a granite measuring table.

 Clamping shaft: ø 8 mm (optional available  DIN 876/0.
clamp with clamping shaft ø 28 mm).  Dimensions transverse arm:

 Fine adjustment: 5 mm (999.680). ø 20 x 150 mm (999.681),
 Total height: 240 mm (999.680/681), ø 20 x 210 mm (999.682/683/684/685).
 Column:
355 mm (999.682/683), ø 30 x 200 mm (999.680/681),
370 mm (999.684/685). ø 30 x 300 mm (999.682/684),
 Max. measuring height: 260 mm ø 30 x 300 mm (999.683/685: helical threaded
(999.682/683/684/685). with anti drop facility).
 Effective arm length:  Measuring table delivered with a
max. 165 mm (999.682/683/684/685), manufacturer measuring report (only
(999.681: max. 105 mm, 999.680: 68 mm). 999.684/685).
 Measuring table: granite.

999.680

999.681 999.682/684
999.683/685
Item No. Measuring Dimensions Price
height/mm table l x w x h/mm EUR

999.680 140 150 x 100 x 40 C06.311.Prenar.20240422
999.681 160 150 x 100 x 40
999.682 260 250 x 200 x 55
999.683 260 250 x 200 x 55
999.684 260 400 x 400 x 70
999.685 260 400 x 400 x 70

Option:
999.679 Clamp ø 28 mm

168
