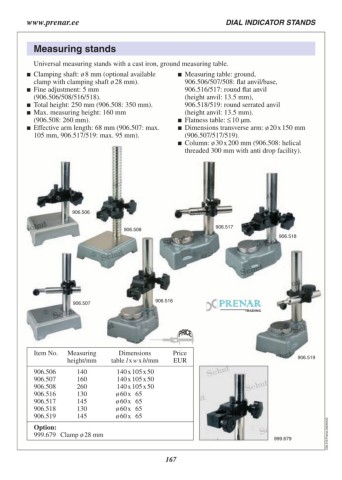

Page 167 - Schut Catalog

www.prenar.ee DIAL INDICATOR STANDS

Measuring stands

Universal measuring stands with a cast iron, ground measuring table.

 Clamping shaft: ø 8 mm (optional available  Measuring table: ground,
clamp with clamping shaft ø 28 mm). 906.506/507/508: flat anvil/base,
906.516/517: round flat anvil
 Fine adjustment: 5 mm (height anvil: 13.5 mm),
(906.506/508/516/518). 906.518/519: round serrated anvil
(height anvil: 13.5 mm).
 Total height: 250 mm (906.508: 350 mm).
 Max. measuring height: 160 mm  Flatness table: ≤ 10 µm.
 Dimensions transverse arm: ø 20 x 150 mm
(906.508: 260 mm).
 Effective arm length: 68 mm (906.507: max. (906.507/517/519).
 Column: ø 30 x 200 mm (906.508: helical
105 mm, 906.517/519: max. 95 mm).
threaded 300 mm with anti drop facility).

906.506

906.508 906.517

906.518

906.507 906.516

Item No. Measuring Dimensions Price 906.519
height/mm table l x w x h/mm EUR 999.679

906.506 140 140 x 105 x 50 C06.310.Prenar.20240422
906.507 160 140 x 105 x 50
906.508 260 140 x 105 x 50
906.516 130 ø 60 x 65
906.517 145 ø 60 x 65
906.518 130 ø 60 x 65
906.519 145 ø 60 x 65

Option:
999.679 Clamp ø 28 mm

167
