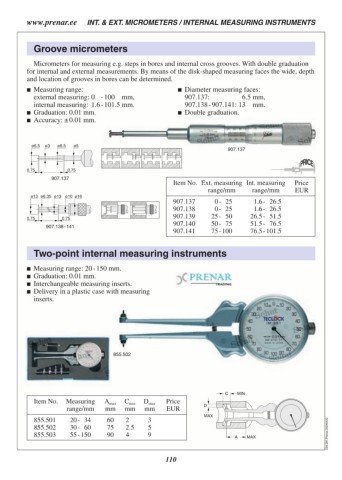

Page 110 - Schut Catalog

www.prenar.ee INT. & EXT. MICROMETERS / INTERNAL MEASURING INSTRUMENTS

Groove micrometers

Micrometers for measuring e.g. steps in bores and internal cross grooves. With double graduation
for internal and external measurements. By means of the disk-shaped measuring faces the wide, depth
and location of grooves in bores can be determined.

 Measuring range:  Diameter measuring faces:
external measuring: 0 - 100 mm, 907.137: 6.5 mm,
internal measuring: 1.6 - 101.5 mm. 907.138 - 907.141: 13 mm.
 Double graduation.
 Graduation: 0.01 mm.
 Accuracy: ± 0.01 mm.

ø6.5 ø3 ø6.5 ø5 907.137

0.75 0.75

907.137 Item No. Ext. measuring Int. measuring Price
range/mm range/mm EUR

ø13 ø6.35 ø13 ø10 ø16 907.137 0 - 25 1.6 - 26.5
907.138 0 - 25 1.6 - 26.5
0.75 0.75 907.139 25 - 50 26.5 - 51.5
907.140 50 - 75 51.5 - 76.5
907.138 - 141 907.141 75 - 100 76.5 - 101.5

Two-point internal measuring instruments

 Measuring range: 20 - 150 mm.
 Graduation: 0.01 mm.
 Interchangeable measuring inserts.
 Delivery in a plastic case with measuring

inserts.

855.502

C MIN

Item No. Measuring Amax Cmin Dmax Price D
range/mm mm mm mm EUR MAX

855.501 20 - 34 60 2 3 A MAX C04.281.Prenar.20240422
855.502 30 - 60 75 2.5 5
855.503 55 - 150 90 4 9

110
