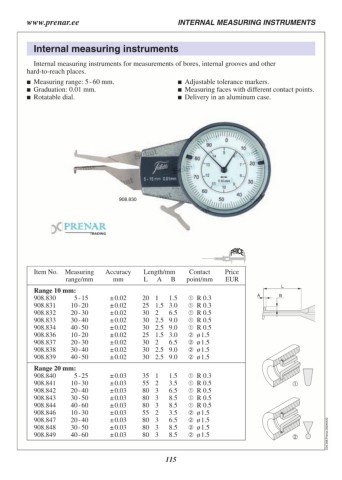

Page 115 - Schut Catalog

www.prenar.ee INTERNAL MEASURING INSTRUMENTS

Internal measuring instruments

Internal measuring instruments for measurements of bores, internal grooves and other
hard‑to‑reach places.

 Measuring range: 5 - 60 mm.  Adjustable tolerance markers.
 Graduation: 0.01 mm.  Measuring faces with different contact points.
 Rotatable dial.  Delivery in an aluminum case.

908.830

Item No. Measuring Accuracy Length/mm Contact Price
range/mm mm L A B point/mm EUR

Range 10 mm: L
908.830 5 - 15 ± 0.02 20 1 1.5  R 0.3 AB

908.831 10 - 20 ± 0.02 25 1.5 3.0  R 0.3
908.832 20 - 30 ± 0.02 30 2 6.5  R 0.5
908.833 30 - 40 ± 0.02 30 2.5 9.0  R 0.5
908.834 40 - 50 ± 0.02 30 2.5 9.0  R 0.5
908.836 10 - 20 ± 0.02 25 1.5 3.0  ø 1.5
908.837 20 - 30 ± 0.02 30 2 6.5  ø 1.5
908.838 30 - 40 ± 0.02 30 2.5 9.0  ø 1.5
908.839 40 - 50 ± 0.02 30 2.5 9.0  ø 1.5

Range 20 mm: ± 0.03 35 1 1.5  R 0.3  C04.308.Prenar.20240422
908.840 5 - 25 ± 0.03 55 2 3.5  R 0.5 
908.841 10 - 30 ± 0.03 80 3 6.5  R 0.5
908.842 20 - 40 ± 0.03 80 3 8.5  R 0.5
908.843 30 - 50 ± 0.03 80 3 8.5  R 0.5
908.844 40 - 60 ± 0.03 55 2 3.5  ø 1.5
908.846 10 - 30 ± 0.03 80 3 6.5  ø 1.5
908.847 20 - 40 ± 0.03 80 3 8.5  ø 1.5
908.848 30 - 50 ± 0.03 80 3 8.5  ø 1.5
908.849 40 - 60

115
