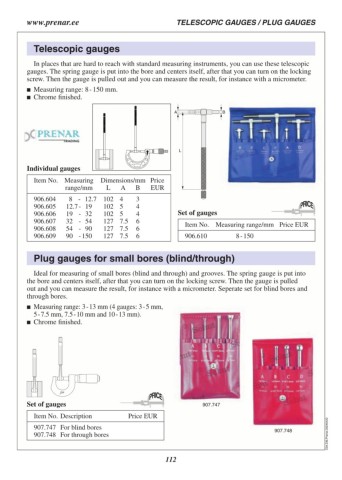

P. 112
www.prenar.ee TELESCOPIC GAUGES / PLUG GAUGES
Telescopic gauges
In places that are hard to reach with standard measuring instruments, you can use these telescopic
gauges. The spring gauge is put into the bore and centers itself, after that you can turn on the locking
screw. Then the gauge is pulled out and you can measure the result, for instance with a micrometer.
Measuring range: 8 - 150 mm.
Chrome finished.
AB
L
Individual gauges
Item No. Measuring Dimensions/mm Price
range/mm L A B EUR
906.604 8 - 12.7 102 4 3 Set of gauges
906.605 12.7 - 19 102 5 4
906.606 19 - 32 102 5 4 Item No. Measuring range/mm Price EUR
906.607 32 - 54 127 7.5 6
906.608 54 - 90 127 7.5 6 906.610 8 - 150
906.609 90 - 150 127 7.5 6
Plug gauges for small bores (blind/through)
Ideal for measuring of small bores (blind and through) and grooves. The spring gauge is put into
the bore and centers itself, after that you can turn on the locking screw. Then the gauge is pulled
out and you can measure the result, for instance with a micrometer. Seperate set for blind bores and
through bores.
Measuring range: 3 - 13 mm (4 gauges: 3 - 5 mm,
5 - 7.5 mm, 7.5 - 10 mm and 10 - 13 mm).
Chrome finished.
Set of gauges 907.747
Item No. Description
907.747 For blind bores Price EUR 907.748 C04.236.Prenar.20240422
907.748 For through bores 112
