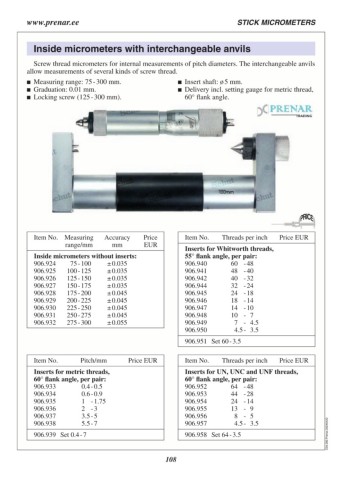

www.prenar.ee STICK MICROMETERS
Inside micrometers with interchangeable anvils
Screw thread micrometers for internal measurements of pitch diameters. The interchangeable anvils
allow measurements of several kinds of screw thread.
Measuring range: 75 - 300 mm. Insert shaft: ø 5 mm.
Graduation: 0.01 mm. Delivery incl. setting gauge for metric thread,
Locking screw (125 - 300 mm).
60° flank angle.
Item No. Measuring Accuracy Price Item No. Threads per inch Price EUR
range/mm mm EUR
Inserts for Whitworth threads,
Inside micrometers without inserts: 55° flank angle, per pair:
906.924 75 - 100 ± 0.035 906.940 60 - 48
906.925 100 - 125 ± 0.035 906.941 48 - 40
906.926 125 - 150 ± 0.035 906.942 40 - 32
906.927 150 - 175 ± 0.035 906.944 32 - 24
906.928 175 - 200 ± 0.045 906.945 24 - 18
906.929 200 - 225 ± 0.045 906.946 18 - 14
906.930 225 - 250 ± 0.045 906.947 14 - 10
906.931 250 - 275 ± 0.045 906.948 10 - 7
906.932 275 - 300 ± 0.055 906.949 7 - 4.5
906.950 4.5 - 3.5
906.951 Set 60 - 3.5
Item No. Pitch/mm Price EUR Item No. Threads per inch Price EUR
Inserts for metric threads, Inserts for UN, UNC and UNF threads,
60° flank angle, per pair: 60° flank angle, per pair:
906.933 0.4 - 0.5 906.952 64 - 48
906.934 0.6 - 0.9 906.953 44 - 28
906.935 1 - 1.75 906.954 24 - 14
906.936 2 - 3 906.955 13 - 9
906.937 3.5 - 5 906.956 8 - 5
906.938 5.5 - 7 906.957 4.5 - 3.5 C04.282.Prenar.20240422
906.939 Set 0.4 - 7 906.958 Set 64 - 3.5
