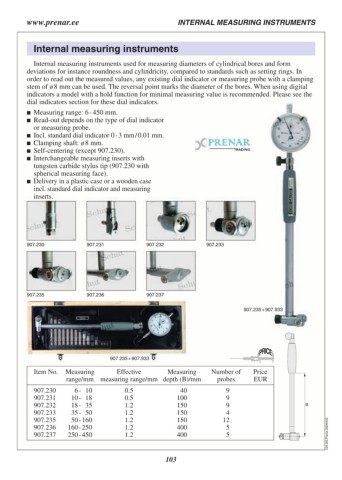

www.prenar.ee INTERNAL MEASURING INSTRUMENTS
Internal measuring instruments
Internal measuring instruments used for measuring diameters of cylindrical bores and form
deviations for instance roundness and cylindricity, compared to standards such as setting rings. In
order to read out the measured values, any existing dial indicator or measuring probe with a clamping
stem of ø 8 mm can be used. The reversal point marks the diameter of the bores. When using digital
indicators a model with a hold function for minimal measuring value is recommended. Please see the
dial indicators section for these dial indicators.
Measuring range: 6 - 450 mm.
Read-out depends on the type of dial indicator
or measuring probe.
Incl. standard dial indicator 0 - 3 mm / 0.01 mm.
Clamping shaft: ø 8 mm.
Self-centering (except 907.230).
Interchangeable measuring inserts with
tungsten carbide stylus tip (907.230 with
spherical measuring face).
Delivery in a plastic case or a wooden case
incl. standard dial indicator and measuring
inserts.
907.230 907.231 907.232 907.233
907.235 907.236 907.237
907.235 + 907.933
907.235 + 907.933
Item No. Measuring Effective Measuring Number of Price
range/mm measuring range/mm depth (B)/mm probes EUR
9
907.230 6 - 10 0.5 40 9 B
907.231 10 - 18 0.5 100 9
907.232 18 - 35 1.2 150 4 C04.303.Prenar.20240422
907.233 35 - 50 1.2 150 12
907.235 50 - 160 1.2 150 5
907.236 160 - 250 1.2 400 5
907.237 250 - 450 1.2 400
