www.prenar.ee SETTING INSTRUMENTS

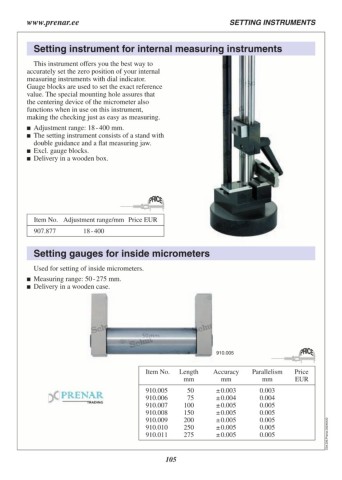

Setting instrument for internal measuring instruments
This instrument offers you the best way to
accurately set the zero position of your internal
measuring instruments with dial indicator.
Gauge blocks are used to set the exact reference
value. The special mounting hole assures that
the centering device of the micrometer also
functions when in use on this instrument,
making the checking just as easy as measuring.
Adjustment range: 18 - 400 mm.
The setting instrument consists of a stand with
double guidance and a flat measuring jaw.
Excl. gauge blocks.
Delivery in a wooden box.
Item No. Adjustment range/mm Price EUR
907.877 18 - 400
Setting gauges for inside micrometers
Used for setting of inside micrometers.
Measuring range: 50 - 275 mm.
Delivery in a wooden case.
910.005
Item No. Length Accuracy Parallelism Price
mm mm mm EUR
910.005 50 ± 0.003 0.003 C04.226.Prenar.20240422
910.006 75 ± 0.004 0.004
910.007 100 ± 0.005 0.005
910.008 150 ± 0.005 0.005
910.009 200 ± 0.005 0.005
910.010 250 ± 0.005 0.005
910.011 275 ± 0.005 0.005
