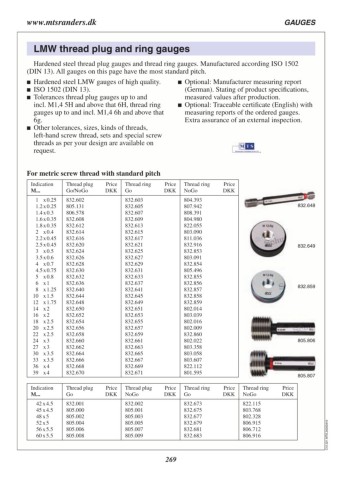

Page 269 - Schut Catalog

www.mtsranders.dk GAUGES

LMW thread plug and ring gauges

Hardened steel thread plug gauges and thread ring gauges. Manufactured according ISO 1502
(DIN 13). All gauges on this page have the most standard pitch.

 Hardened steel LMW gauges of high quality.  Optional: Manufacturer measuring report
 ISO 1502 (DIN 13). (German). Stating of product specifications,
 Tolerances thread plug gauges up to and measured values after pro­duction.

incl. M1,4 5H and above that 6H, thread ring  Optional: Traceable certificate (English) with
gauges up to and incl. M1,4 6h and above that mea­suring reports of the ordered gauges.
6g. Extra assurance of an external inspection.
 Other tolerances, sizes, kinds of threads,
left-hand screw thread, sets and special screw
threads as per your design are available on
request.

For metric screw thread with standard pitch

Indication Thread plug Price Thread ring Price Thread ring Price
M... Go/NoGo DKK Go DKK NoGo DKK

1 x 0.25 832.602 832.603 804.393 832.648
1.2 x 0.25 805.131 832.605 807.942
1.4 x 0.3 806.578 832.607 808.391 832.649
1.6 x 0.35 832.608 832.609 804.980
1.8 x 0.35 832.612 832.613 822.055 832.859
2 x 0.4 832.614 832.615 803.090
2.2 x 0.45 832.616 832.617 811.036 805.806
2.5 x 0.45 832.620 832.621 832.916 805.807
3 x 0.5 832.624 832.625 832.853 Price
3.5 x 0.6 832.626 832.627 803.091 DKK
4 x 0.7 832.628 832.629 832.854
4.5 x 0.75 832.630 832.631 805.496
5 x 0.8 832.632 832.633 832.855
6 x 1 832.636 832.637 832.856
8 x 1.25 832.640 832.641 832.857
10 x 1.5 832.644 832.645 832.858
12 x 1.75 832.648 832.649 832.859
14 x 2 832.650 832.651 802.014
16 x 2 832.652 832.653 803.039
18 x 2.5 832.654 832.655 802.016
20 x 2.5 832.656 832.657 802.009
22 x 2.5 832.658 832.659 832.860
24 x 3 832.660 832.661 802.022
27 x 3 832.662 832.663 803.358
30 x 3.5 832.664 832.665 803.058
33 x 3.5 832.666 832.667 803.607
36 x 4 832.668 832.669 822.112
39 x 4 832.670 832.671 801.595

Indication Thread plug Price Thread plug Price Thread ring Price Thread ring
M... Go DKK NoGo DKK Go DKK NoGo

42 x 4.5 832.001 832.002 832.673 822.115 C12.321.MTS.20250410
45 x 4.5 805.000 805.001 832.675 803.768
48 x 5 805.002 805.003 832.677 802.328
52 x 5 805.004 805.005 832.679 806.915
56 x 5.5 805.006 805.007 832.681 806.712
60 x 5.5 805.008 805.009 832.683 806.916

269
