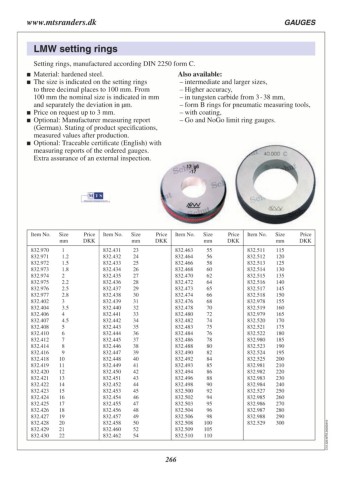

LMW setting rings

Setting rings, manufactured according DIN 2250 form C.

	 Material: hardened steel.                            Also available:
	 The size is indicated on the setting rings            –	intermediate and larger sizes,
                                                         –	Higher accuracy,
  to three decimal places to 100 mm. From                –	in tungsten carbide from 3 - 38 mm,
  100 mm the nominal size is indicated in mm             –	form B rings for pneumatic measuring tools,
  and separately the deviation in μm.                    –	with coating,
	 Price on request up to 3 mm.                          –	Go and NoGo limit ring gauges.
	 Optional: Manufacturer measuring report
  (German). Stating of product specifications,
  measured values after pro­duction.
	 Optional: Traceable certificate (English) with
  mea­suring reports of the ordered gauges.
  Extra assurance of an external inspection.

Item No. Size 	    Price  Item No. Size 	    Price  Item No. Size 	    Price  Item No. Size 	    Price
               mm  DKK                   mm  DKK                   mm  DKK                   mm  DKK

832.970 	   1             832.431 	  23             832.463 	    55           832.511 	     115         C12.320.MTS.20250410
832.971 	    1.2          832.432 	  24             832.464 	    56           832.512 	     120
832.972 	    1.5          832.433 	  25             832.466 	    58           832.513 	     125
832.973 	    1.8          832.434 	  26             832.468 	    60           832.514 	     130
832.974 	   2             832.435 	  27             832.470 	    62           832.515 	     135
832.975 	    2.2          832.436 	  28             832.472 	    64           832.516 	     140
832.976 	    2.5          832.437 	  29             832.473 	    65           832.517 	     145
832.977 	    2.8          832.438 	  30             832.474 	    66           832.518 	     150
832.402 	   3             832.439 	  31             832.476 	    68           832.978 	     155
832.404 	    3.5          832.440 	  32             832.478 	    70           832.519 	     160
832.406 	   4             832.441 	  33             832.480 	    72           832.979 	     165
832.407 	    4.5          832.442 	  34             832.482 	    74           832.520 	     170
832.408 	   5             832.443 	  35             832.483 	    75           832.521 	     175
832.410 	   6             832.444 	  36             832.484 	    76           832.522 	     180
832.412 	   7             832.445 	  37             832.486 	    78           832.980 	     185
832.414 	   8             832.446 	  38             832.488 	    80           832.523 	     190
832.416 	   9             832.447 	  39             832.490 	    82           832.524 	     195
832.418 	  10             832.448 	  40             832.492 	    84           832.525 	     200
832.419 	  11             832.449 	  41             832.493 	    85           832.981 	     210
832.420 	  12             832.450 	  42             832.494 	    86           832.982 	     220
832.421 	  13             832.451 	  43             832.496 	    88           832.983 	     230
832.422 	  14             832.452 	  44             832.498 	    90           832.984 	     240
832.423 	  15             832.453 	  45             832.500 	    92           832.527 	     250
832.424 	  16             832.454 	  46             832.502 	    94           832.985 	     260
832.425 	  17             832.455 	  47             832.503 	    95           832.986 	     270
832.426 	  18             832.456 	  48             832.504 	    96           832.987 	     280
832.427 	  19             832.457 	  49             832.506 	    98           832.988 	     290
832.428 	  20             832.458 	  50             832.508 	  100            832.529 	     300
832.429 	  21             832.460 	  52             832.509 	  105
832.430 	  22             832.462 	  54             832.510 	  110
