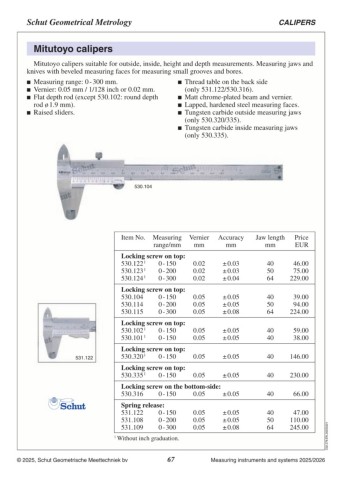

Page 67 - Schut Catalog

Schut Geometrical Metrology CALIPERS

Mitutoyo calipers

Mitutoyo calipers suitable for outside, inside, height and depth measurements. Measuring jaws and
knives with beveled measuring faces for measuring small grooves and bores.

 Measuring range: 0 - 300 mm.  Thread table on the back side
 Vernier: 0.05 mm / 1/128 inch or 0.02 mm. (only 531.122/530.316).
 Flat depth rod (except 530.102: round depth
 Matt chrome-plated beam and vernier.
rod ø 1.9 mm).  Lapped, hardened steel measuring faces.
 Raised sliders.  Tungsten carbide outside measuring jaws

(only 530.320/335).
 Tungsten carbide inside measuring jaws

(only 530.335).

530.104

Item No. Measuring Vernier Accuracy Jaw length Price
range/mm mm mm mm EUR

Locking screw on top: ± 0.03 40 46.00
530.122 1 0 - 150 0.02 ± 0.03 50 75.00
530.123 1 0 - 200 0.02 ± 0.04 64 229.00
530.124 1 0 - 300 0.02

Locking screw on top: ± 0.05 40 39.00
530.104 0 - 150 0.05 ± 0.05 50 94.00
530.114 0 - 200 0.05 ± 0.08 64 224.00
530.115 0 - 300 0.05

Locking screw on top: ± 0.05 40 59.00
530.102 1 0 - 150 0.05 ± 0.05 40 38.00
530.101 1 0 - 150 0.05

531.122 Locking screw on top: 40 146.00
530.320 1 0 - 150 0.05 ± 0.05

Locking screw on top: 40 230.00
530.335 1 0 - 150 0.05 ± 0.05

Locking screw on the bottom-side: 40 66.00
530.316 0 - 150 0.05 ± 0.05

Spring release: 0.05 ± 0.05 40 47.00 C02.278.EN.20250321
531.122 0 - 150 0.05 ± 0.05 50 110.00
531.108 0 - 200 0.05 ± 0.08 64 245.00
531.109 0 - 300

1 Without inch graduation.
