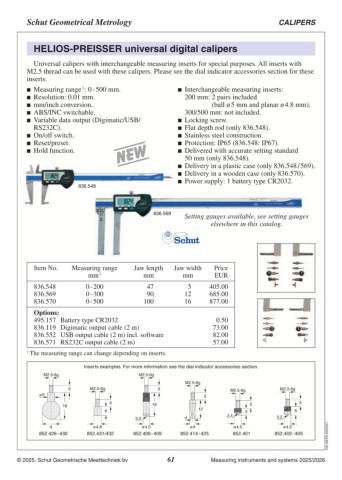

Page 61 - Schut Catalog

Schut Geometrical Metrology CALIPERS

HELIOS-PREISSER universal digital calipers

Universal calipers with interchangeable measuring inserts for special purposes. All inserts with
M2.5 thread can be used with these calipers. Please see the dial indicator accessories section for these
inserts.

 Measuring range 1: 0 - 500 mm.  Interchangeable measuring inserts:
 Resolution: 0.01 mm. 200 mm: 2 pairs included
 mm/inch conversion. (ball ø 5 mm and planar ø 4.8 mm),
 ABS/INC switchable. 300/500 mm: not included.
 Variable data output (Digimatic/USB/
 Locking screw.
RS232C).  Flat depth rod (only 836.548).
 On/off switch.  Stainless steel construction.
 Reset/preset.  Protection: IP65 (836.548: IP67).
 Hold function.  Delivered with accurate setting standard

836.548 50 mm (only 836.548).
 Delivery in a plastic case (only 836.548 / 569).
 Delivery in a wooden case (only 836.570).
 Power supply: 1 battery type CR2032.

836.569 Setting gauges available, see setting gauges
elsewhere in this catalog.

Item No. Measuring range Jaw length Jaw width Price
mm 1 mm mm EUR

836.548 0 - 200 47 5 405.00
836.569 0 - 300 90 12 685.00
836.570 0 - 500 100 16 877.00

Options: 0.50
495.157 Battery type CR2032 73.00
836.119 Digimatic output cable (2 m) 82.00
836.552 USB output cable (2 m) incl. software 57.00
836.571 RS232C output cable (2 m)

1 The measuring range can change depending on inserts.

Inserts examples. For more information see the dial indicator accessories section.

M2.5-6g M2.5-6g

5 M2.5-6g 5 M2.5-6g M2.5-6g M2.5-6g
ø5 16
5 3.2 5 5 5
18 6 12 3 6
d 2.4 3.2
d
852.426 - 430 ø4.8 ø4.5 ø4 ø4.5 ø4.5 C02.308.EN.20250321
852.431/432 852.406 - 409 852.414 - 425 852.401 852.402 - 405
