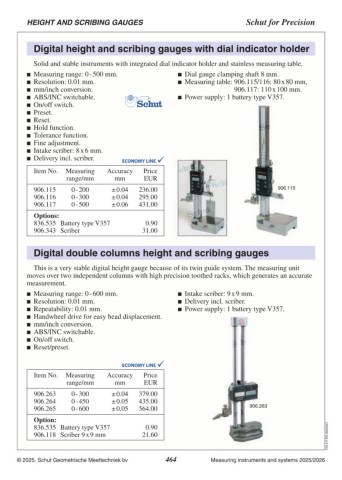

P. 464
HEIGHT AND SCRIBING GAUGES Schut for Precision
Digital height and scribing gauges with dial indicator holder
Solid and stable instruments with integrated dial indicator holder and stainless measuring table.
Measuring range: 0 - 500 mm. Dial gauge clamping shaft 8 mm.
Resolution: 0.01 mm. Measuring table: 906.115/116: 80 x 80 mm,
mm/inch conversion.
ABS/INC switchable. 906.117: 110 x 100 mm.
On/off switch. Power supply: 1 battery type V357.
Preset.
Reset.
Hold function.
Tolerance function.
Fine adjustment.
Intake scriber: 8 x 6 mm.
Delivery incl. scriber.
Item No. Measuring Accuracy Price
range/mm mm EUR
906.115 0 - 200 ± 0.04 236.00 906.115
906.116 0 - 300 ± 0.04 295.00
906.117 0 - 500 ± 0.06 431.00
Options: 0.90
836.535 Battery type V357 31.00
906.343 Scriber
Digital double columns height and scribing gauges
This is a very stable digital height gauge because of its twin guide system. The measuring unit
moves over two independent columns with high precision toothed racks, which generates an accurate
measurement.
Measuring range: 0 - 600 mm. Intake scriber: 9 x 9 mm.
Resolution: 0.01 mm. Delivery incl. scriber.
Repeatability: 0.01 mm. Power supply: 1 battery type V357.
Handwheel drive for easy head displacement.
mm/inch conversion.
ABS/INC switchable.
On/off switch.
Reset/preset.
Item No. Measuring Accuracy Price
range/mm mm EUR
906.263 0 - 300 ± 0.04 379.00 906.263
906.264 0 - 450 ± 0.05 435.00 Measuring instruments and systems 2025/2026
906.265 0 - 600 ± 0.05 564.00
Option: 0.90 C16.317.EN.20250321
836.535 Battery type V357 21.60
906.118 Scriber 9 x 9 mm
© 2025, Schut Geometrische Meettechniek bv 464
