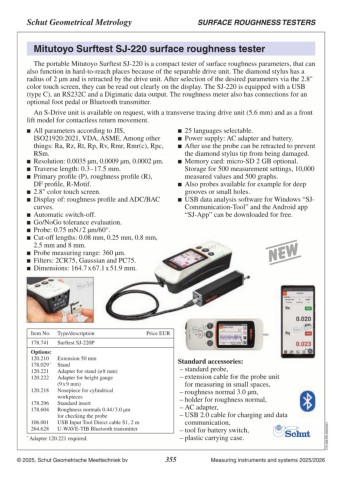

Schut Geometrical Metrology SURFACE ROUGHNESS TESTERS
Mitutoyo Surftest SJ-220 surface roughness tester
The portable Mitutoyo Surftest SJ‑220 is a compact tester of surface roughness parameters, that can
also function in hard-to-reach places because of the separable drive unit. The diamond stylus has a
radius of 2 µm and is retracted by the drive unit. After selection of the desired parameters via the 2.8"
color touch screen, they can be read out clearly on the display. The SJ‑220 is equipped with a USB
(type C), an RS232C and a Digimatic data output. The roughness meter also has connections for an
optional foot pedal or Bluetooth transmitter.
An S‑Drive unit is available on request, with a transverse tracing drive unit (5.6 mm) and as a front
lift model for contactless return movement.
All parameters according to JIS, 25 languages s electable.
ISO21920:2021, VDA, ASME. Among other Power supply: AC adapter and battery.
things: Ra, Rz, Rt, Rp, Rv, Rmr, Rmr(c), Rpc, After use the probe can be retracted to prevent
RSm.
the diamond stylus tip from being damaged.
Resolution: 0.0035 µm, 0.0009 µm, 0.0002 µm. Memory card: micro‑SD 2 GB optional.
Traverse length: 0.3 - 17.5 mm.
Primary profile (P), roughness profile (R), Storage for 500 measurement settings, 10,000
measured values a nd 500 graphs.
DF profile, R‑Motif. Also probes available for example for deep
2.8" color touch screen. grooves or small holes.
Display of: roughness profile and ADC/BAC USB data analysis software for Windows “SJ-
Communication-Tool” and the Android app
curves. “SJ-App” can be downloaded for free.
Automatic switch-off.
Go/NoGo tolerance evaluation.
Probe: 0.75 mN / 2 μm/60°.
Cut-off lengths: 0.08 mm, 0.25 mm, 0.8 mm,
2.5 mm and 8 mm.
Probe measuring range: 360 µm.
Filters: 2CR75, Gaussian and PC75.
Dimensions: 164.7 x 67.1 x 51.9 mm.
Item No. Type/description Price EUR
178.741 Surftest SJ‑220P
Options: Extension 50 mm Standard accessories: C10.306.EN.20250321
120.210 Stand – standard probe,
178.029 * Adapter for stand (ø 8 mm) – extension cable for the probe unit
120.221 Adapter for height gauge
120.222 (9 x 9 mm) for measuring in small spaces,
Nosepiece for cylindrical – roughness normal 3.0 µm,
120.218 workpieces – holder for roughness normal,
Standard insert – AC adapter,
178.296 Roughness normals 0.44 / 3.0 μm – USB 2.0 cable for charging and data
178.604 for checking the probe
USB Input Tool Direct cable S1, 2 m communication,
106.001 U-WAVE-TIB Bluetooth transmitter – tool for battery switch,
264.628 – plastic carrying case.
* Adapter 120.221 required.
