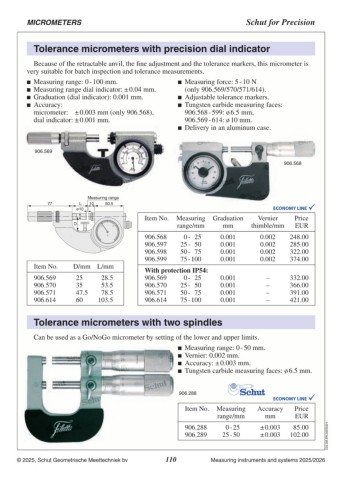

P. 110

MICROMETERS                                                               Schut for Precision

Tolerance micrometers with precision dial indicator

  Because of the retractable anvil, the fine adjustment and the tolerance markers, this micrometer is
very suitable for batch inspection and tolerance measurements.

	 Measuring range: 0 - 100 mm.                     	 Measuring force: 5 - 10 N
	 Measuring range dial indicator: ± 0.04 mm.         (only 906.569/570/571/614).
	 Graduation (dial indicator): 0.001 mm.
	 Accuracy: 	                                      	 Adjustable tolerance markers.
                                                    	 Tungsten carbide measuring faces:
  micrometer:	 ± 0.003 mm (only 906.568),
  dial indicator: ± 0.001 mm.                         906.568 - 599: ø 6.5 mm,
                                                      906.569 - 614: ø 10 mm.
                                                    	 Delivery in an aluminum case.

906.569

                                                                                 906.568

               Measuring range

77           L 10  50.5

          ø10

          D                                 Item No. Measuring 	 Graduation 	 Vernier 	 Price
                                                          range/mm mm thimble/mm EUR

Item No.   D/mm L/mm                        906.568 	 0	-	 25 	 0.001     0.002             248.00
906.569   	 25 	 28.5                       906.597 	 25	-	 50 	 0.001    0.002             285.00
906.570   	 35 	 53.5                       906.598 	 50	-	 75 	 0.001    0.002             322.00
906.571   	 47.5 	 78.5                     906.599 	 75	-	100 	 0.001    0.002             374.00
906.614   	 60 	 103.5
                                            With protection IP54:  0.001  – 332.00
                                            906.569 	 0	-	 25 	    0.001  – 366.00
                                            906.570 	 25	-	 50 	   0.001  – 391.00
                                            906.571 	 50	-	 75 	   0.001  – 421.00
                                            906.614 	 75	-	100

Tolerance micrometers with two spindles

Can be used as a Go/NoGo micrometer by setting of the lower and upper limits.
                                                             	 Measuring range: 0 - 50 mm.
                                                             	 Vernier: 0.002 mm.
                                                             	 Accuracy: ± 0.003 mm.
                                                             	 Tungsten carbide measuring faces: ø 6.5 mm.

                                                    906.288                                                  C03.205.EN.20250321

                                                      Item No. Measuring 	 Accuracy 	 Price
                                                                     range/mm mm EUR

                                                      906.288 	 0	-	25 	 ± 0.003 85.00
                                                      906.289 	 25	-	50 	 ± 0.003 102.00

© 2025, Schut Geometrische Meettechniek bv     110  Measuring instruments and systems 2025/2026
