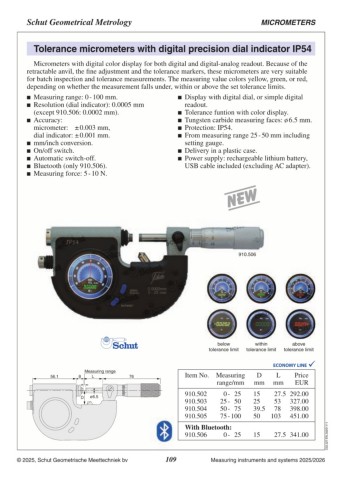

P. 109

Schut Geometrical Metrology                                                     MICROMETERS

Tolerance micrometers with digital precision dial indicator IP54

  Micrometers with digital color display for both digital and digital-analog readout. Because of the
retractable anvil, the fine adjustment and the tolerance markers, these micrometers are very suitable
for batch inspection and tolerance measurements. The measuring value colors yellow, green, or red,
depending on whether the measurement falls under, within or above the set tolerance limits.

	 Measuring range: 0 - 100 mm.                      	 Display with digital dial, or simple digital
	 Resolution (dial indicator): 0.0005 mm 	            readout.

  (except 910.506: 0.0002 mm).                       	 Tolerance funtion with color display.
	 Accuracy: 	                                       	 Tungsten carbide measuring faces: ø 6.5 mm.
                                                     	 Protection: IP54.
  micrometer:	 ± 0.003 mm, 	                         	 From measuring range 25 - 50 mm including
  dial indicator: ± 0.001 mm.
	 mm/inch conversion.                                 setting gauge.
	 On/off switch.                                    	 Delivery in a plastic case.
	 Automatic switch-off.                             	 Power supply: rechargeable lithium battery,
	 Bluetooth (only 910.506).
	 Measuring force: 5 - 10 N.                          USB cable included (excluding AC adapter).

                                                                       910.506

                                                                below     within  above
                                                     tolerance limit tolerance limit tolerance limit

56.1      Measuring range                   76       Item No. Measuring 	 D 	 L 	 Price
      8L                                                           range/mm mm mm EUR

      D ø6.5                                         910.502 	   0	-	 25  	 15 	 27.5 292.00
                                                     910.503 	  25	-	 50  	 25 	 53 327.00
                                                     910.504 	  50	-	 75  	 39.5 	 78 398.00
                                                     910.505 	  75	-	100  	 50 	103 451.00

                                                     With Bluetooth:                                   C03.327.EN.20250321
                                                     910.506 	 0	-	 25 	 15 	 27.5 341.00

© 2025, Schut Geometrische Meettechniek bv      109  Measuring instruments and systems 2025/2026
