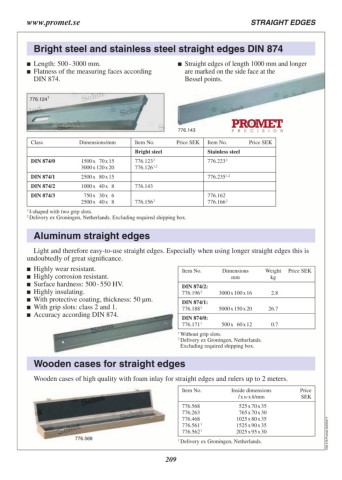

Page 209 - Schut Catalog
P. 209
www.promet.se STRAIGHT EDGES
Aluminum straight edges
Light and therefore easy-to-use straight edges. Especially when using longer straight edges this
is undoubtedly of great significance. High quality wooden cases for straight edges are optionally
available. Please see the wooden cases for straight edges section for these wooden cases.
Length: 500 - 3000 mm. Accuracy according DIN 874.
I-shaped, from length 2000 mm with two grip Delivery with an inspection report.
slots.
With protective coating, thickness: 50 µm ± 5.
Surface hardness: 500 - 550 HV.
Highly wear resistant.
Highly corrosion resistant.
Highly insulating.
776.618 Item No. Dimensions Weight Price
mm kg SEK
Item No. Dimensions Weight Price
mm kg SEK DIN 874/1: 0.7 2,724.00
776.617 500 x 60 x 12 1.4 6,120.00
DIN 874/0: 776.618 1000 x 60 x 12 4.3 9,756.00
776.611 500 x 60 x 12 0.7 3,852.00 776.619 1500 x 100 x 15 5.9 13,272.00
776.612 1000 x 60 x 12 1.4 7,260.00 776.620 1,2 2000 x 100 x 15 7.5 16,440.00
776.613 1500 x 100 x 15 4.3 12,252.00 776.621 1,2 2500 x 100 x 15 15.9 27,840.00
776.614 1,2 2000 x 100 x 15 5.9 16,104.00 776.622 1,2 3000 x 150 x 20
776.615 1,2 2500 x 100 x 15 7.5 18,708.00
776.616 1,2 3000 x 150 x 20 15.9 34,080.00 DIN 874/2: 0.7 2,496.00 C09.309.Promet.20240517
776.623 500 x 60 x 12 1.4 5,448.00
1 With two grip slots. 776.624 1000 x 60 x 12 2.1 8,052.00
2 Delivery ex Groningen, Netherlands. 776.625 1500 x 60 x 12 2.8 10,776.00
776.626 1,2 2000 x 60 x 12 7.5 14,964.00
776.627 1,2 2500 x 100 x 15 8.7 19,500.00
776.628 1,2 3000 x 100 x 15
