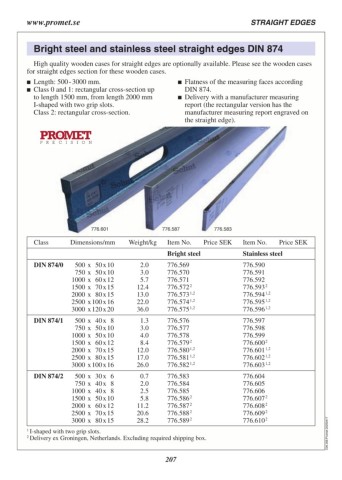

Page 207 - Schut Catalog

www.promet.se STRAIGHT EDGES

Bright steel and stainless steel straight edges DIN 874

High quality wooden cases for straight edges are optionally available. Please see the wooden cases
for straight edges section for these wooden cases.

 Length: 500 - 3000 mm.  Flatness of the measuring faces according
 Class 0 and 1: rectangular cross-section up DIN 874.

to length 1500 mm, from length 2000 mm  Delivery with a manufacturer measuring
I‑shaped with two grip slots. report (the rectangular version has the
Class 2: rectangular cross-section. manufacturer measuring report engraved on
the straight edge).

776.601 776.587 776.583

Class Dimensions/mm Weight/kg Item No. Price SEK Item No. Price SEK

Bright steel Stainless steel

DIN 874/0 500 x 50 x 10 2.0 7 76.569 912.00 7 76.590 1,584.00
750 x 50 x 10 3.0 776.570 1,284.00 776.591 2,376.00
1000 x 60 x 12 5.7 776.571 2,268.00 776.592 3,852.00
1500 x 70 x 15 12.4 776.572 4,200.00 7 76.593 7,032.00
2000 x 80 x 15 13.0 776.573 1,2 7,716.00 7 76.594 1,2 14,064.00
2500 x 100 x 16 22.0 7 76.574 1,2 11,340.00 7 76.595 1,2 22,116.00
3000 x 120 x 18 36.0 776.575 1,2 17,016.00 7 76.596 1,2 38,880.00

DIN 874/1 500 x 40 x 8 1.3 776.576 504.00 776.597 912.00
750 x 50 x 10 3.0 776.577 888.00 776.598 1,644.00
1000 x 50 x 10 4.0 7 76.578 1,044.00 776.599 2,376.00
1500 x 60 x 12 8.4 7 76.579 1,980.00 7 76.600 4,764.00
2000 x 70 x 15 12.0 7 76.580 1,2 5,220.00 776.601 1,2 10,428.00
2500 x 80 x 15 17.0 7 76.581 1,2 7,368.00 776.602 1,2 13,716.00
3000 x 100 x 16 26.0 7 76.582 1,2 11,112.00 7 76.603 1,2 24,360.00

DIN 874/2 500 x 30 x 6 0.7 7 76.583 318.00 776.604 636.00 C09.308.Promet.20240517
750 x 40 x 8 2.0 7 76.584 588.00 776.605 1,248.00
1000 x 40 x 8 2.5 776.585 708.00 776.606 1,632.00
1500 x 50 x 10 5.8 776.586 1,344.00 7 76.607 3,060.00
2000 x 60 x 12 11.2 776.587 2 2,040.00 776.608 2 5,784.00
2500 x 70 x 15 20.6 7 76.588 2 3,972.00 776.609 2 10,656.00
3000 x 80 x 15 28.2 7 76.589 2 6,240.00 776.610 2 15,192.00

1 I-shaped with two grip slots.
2 Delivery ex Groningen, Netherlands.
