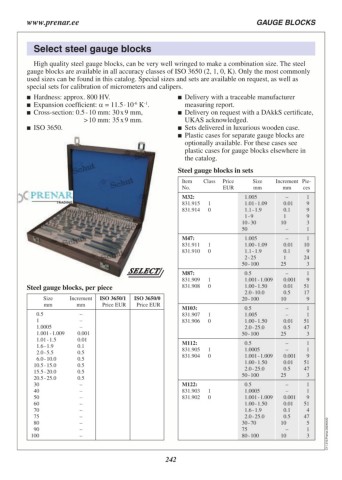

P. 242
www.prenar.ee GAUGE BLOCKS
Select steel gauge blocks
High quality steel gauge blocks, can be very well wringed to make a combination size. The steel
gauge blocks are available in all accuracy classes of ISO 3650 (2, 1, 0, K). Only the most commonly
used sizes can be found in this catalog. Special sizes and sets are available on request, as well as
special sets for calibration of micrometers and calipers.
Hardness: approx. 800 HV. Delivery with a traceable manufacturer
Expansion coefficient: α = 11.5 · 10‑6 K‑1. measuring report.
Cross-section: 0.5 - 10 mm: 30 x 9 mm,
Delivery on request with a DAkkS certificate,
> 10 mm: 35 x 9 mm. UKAS acknowledged.
ISO 3650.
Sets delivered in luxurious wooden case.
Plastic cases for separate gauge blocks are
optionally available. For these cases see
plastic cases for gauge blocks elsewhere in
the catalog.
Steel gauge blocks in sets
Item Class Price Size Increment Pie-
No. EUR mm mm ces
M32: 1 1.005 – 1
831.915 0 1.01 - 1.09 0.01 9
831.914 1.1 - 1.9 0.1 9
1 - 9 1 9
10 - 30 10 3
50 – 1
M47: 1 1.005 – 1
831.911 0 1.00 - 1.09 0.01 10
831.910 1.1 - 1.9 0.1 9
2 - 25 1 24
50 - 100 25 3
M87: 0.5 – 1
831.909
831.908 1 1.001 - 1.009 0.001 9
0
Steel gauge blocks, per piece 1.00 - 1.50 0.01 51
Size Increment ISO 3650/1 ISO 3650/0 2.0 - 10.0 0.5 17
mm mm Price EUR Price EUR
20 - 100 10 9
0.5 – M103: 1 0.5 – 1
1 – 831.907 0 1.005 – 1
1.0005 – 831.906 1.00 - 1.50 0.01 51
1.001 - 1.009 0.001 2.0 - 25.0 0.5 47
1.01 - 1.5 0.01 50 - 100 25 3
1.6 - 1.9 0.1
2.0 - 5.5 0.5
6.0 - 10.0 0.5 M112: 0.5 – 1
10.5 - 15.0 0.5 831.905
15.5 - 20.0 0.5 831.904 1 1.0005 – 1
20.5 - 25.0 0.5 0
30 – 1.001 - 1.009 0.001 9
40 –
50 – 1.00 - 1.50 0.01 51
60 –
70 – 2.0 - 25.0 0.5 47
75 –
80 – 50 - 100 25 3
90 –
100 – M122: 0.5 – 1
831.903
831.902 1 1.0005 – 1
0
1.001 - 1.009 0.001 9
1.00 - 1.50 0.01 51
1.6 - 1.9 0.1 4
2.0 - 25.0 0.5 47 C11.210.Prenar.20240422
30 - 70 10 5
75 – 1
80 - 100 10 3
