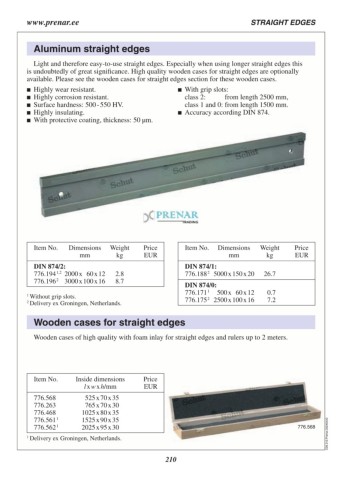

Page 210 - Schut Catalog
P. 210
www.prenar.ee STRAIGHT EDGES
Aluminum straight edges
Light and therefore easy-to-use straight edges. Especially when using longer straight edges this
is undoubtedly of great significance. High quality wooden cases for straight edges are optionally
available. Please see the wooden cases for straight edges section for these wooden cases.
Highly wear resistant. With grip slots:
Highly corrosion resistant. class 2: from length 2500 mm,
Surface hardness: 500 - 550 HV. class 1 and 0: from length 1500 mm.
Highly insulating.
With protective coating, thickness: 50 µm. Accuracy according DIN 874.
Item No. Dimensions Weight Price Item No. Dimensions Weight Price
mm kg EUR mm kg EUR
DIN 874/2: DIN 874/1:
776.194 1,2 2000 x 60 x 12 2.8 776.188 2 5000 x 150 x 20 26.7
776.196 2 3000 x 100 x 16 8.7
DIN 874/0: 0.7
1 Without grip slots. 776.171 1 500 x 60 x 12 7.2
2 Delivery ex Groningen, Netherlands. 776.175 2 2500 x 100 x 16
Wooden cases for straight edges
Wooden cases of high quality with foam inlay for straight edges and rulers up to 2 meters.
Item No. Inside dimensions Price
l x w x h/mm EUR
776.568 525 x 70 x 35 776.568 C09.312.Prenar.20240422
776.263 765 x 70 x 30
776.468 1025 x 80 x 35
776.561 1 1525 x 90 x 35
776.562 1 2025 x 95 x 30
1 Delivery ex Groningen, Netherlands.
