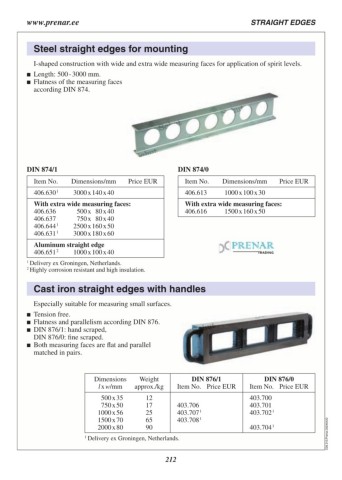

Page 212 - Schut Catalog

www.prenar.ee STRAIGHT EDGES

Steel straight edges for mounting

I‑shaped construction with wide and extra wide measuring faces for application of spirit levels.
 Length: 500 - 3000 mm.
 Flatness of the measuring faces

according DIN 874.

DIN 874/1 DIN 874/0
Item No. Dimensions/mm Price EUR Item No. Dimensions/mm Price EUR
406.630 1 3000 x 140 x 40 406.613 1000 x 100 x 30
With extra wide measuring faces: With extra wide measuring faces:
406.636 500 x 80 x 40 406.616 1500 x 160 x 50
406.637 750 x 80 x 40
406.644 1 2500 x 160 x 50
406.631 1 3000 x 180 x 60
Aluminum straight edge
406.651 2 1000 x 100 x 40

1 Delivery ex Groningen, Netherlands.
2 Highly corrosion resistant and high insulation.

Cast iron straight edges with handles

Especially suitable for measuring small surfaces.
 Tension free.
 Flatness and parallelism according DIN 876.
 DIN 876/1: hand scraped,

DIN 876/0: fine scraped.
 Both measuring faces are flat and parallel

matched in pairs.

Dimensions Weight DIN 876/1 DIN 876/0
l x w/mm approx./kg Item No. Price EUR Item No. Price EUR
403.700
500 x 35 12 403.701 C09.313.Prenar.20240422
750 x 50 17 403.706 403.702 1
1000 x 56 25 403.707 1
1500 x 70 65 403.708 1 403.704 1
2000 x 80 90

1 Delivery ex Groningen, Netherlands.

212
