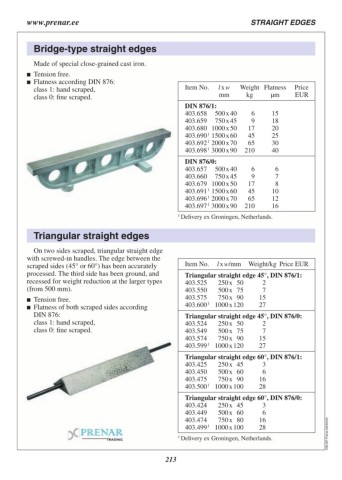

Page 213 - Schut Catalog

www.prenar.ee STRAIGHT EDGES

Bridge-type straight edges Item No. l x w Weight Flatness Price
mm kg µm EUR
Made of special close-grained cast iron.
 Tension free. DIN 876/1:
 Flatness according DIN 876: 403.658 500 x 40 6 15
403.659 750 x 45 9 18
class 1: hand scraped, 403.680 1000 x 50 17 20
class 0: fine scraped. 403.690 1 1500 x 60 45 25
403.692 1 2000 x 70 65 30
Triangular straight edges 403.698 1 3000 x 90 210 40
DIN 876/0:
On two sides scraped, triangular straight edge 403.657 500 x 40 6 6
with screwed-in handles. The edge between the 403.660 750 x 45 9 7
scraped sides (45° or 60°) has been accurately 403.679 1000 x 50 17 8
processed. The third side has been ground, and 403.691 1 1500 x 60 45 10
recessed for weight reduction at the larger types 403.696 1 2000 x 70 65 12
(from 500 mm). 403.697 1 3000 x 90 210 16
 Tension free. 1 Delivery ex Groningen, Netherlands.
 Flatness of both scraped sides according
Item No. l x w/mm Weight/kg Price EUR
DIN 876: Triangular straight edge 45°, DIN 876/1:
class 1: hand scraped, 403.525 250 x 50 2
class 0: fine scraped. 403.550 500 x 75 7
403.575 750 x 90 15
403.600 1 1000 x 120 27 C09.207.Prenar.20240422
Triangular straight edge 45°, DIN 876/0:
403.524 250 x 50 2
403.549 500 x 75 7
403.574 750 x 90 15
403.599 1 1000 x 120 27
Triangular straight edge 60°, DIN 876/1:
403.425 250 x 45 3
403.450 500 x 60 6
403.475 750 x 90 16
403.500 1 1000 x 100 28
Triangular straight edge 60°, DIN 876/0:
403.424 250 x 45 3
403.449 500 x 60 6
403.474 750 x 80 16
403.499 1 1000 x 100 28
1 Delivery ex Groningen, Netherlands.

213
