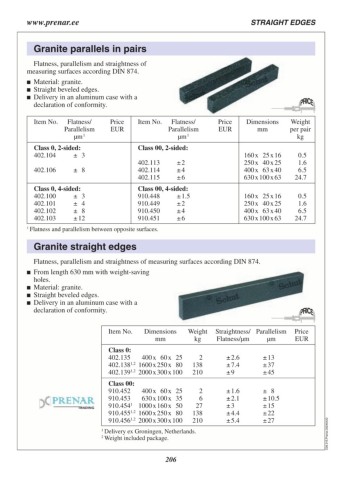

P. 206
www.prenar.ee STRAIGHT EDGES
Granite parallels in pairs
Flatness, parallelism and straightness of
measuring surfaces according DIN 874.
Material: granite.
Straight beveled edges.
Delivery in an aluminum case with a
declaration of conformity.
Item No. Flatness/ Price Item No. Flatness/ Price Dimensions Weight
Parallelism EUR Parallelism EUR mm per pair
µm 1 µm 1 kg
Class 0, 2-sided: Class 00, 2-sided: 160 x 25 x 16 0.5
402.104 ± 3 250 x 40 x 25 1.6
400 x 63 x 40 6.5
402.113 ± 2 630 x 100 x 63 24.7
402.106 ± 8 402.114 ± 4
402.115 ± 6
Class 0, 4-sided: Class 00, 4-sided: 160 x 25 x 16 0.5
402.100 ± 3 910.448 ± 1.5 250 x 40 x 25 1.6
402.101 ± 4 910.449 ± 2 400 x 63 x 40 6.5
402.102 ± 8 910.450 ± 4 630 x 100 x 63 24.7
402.103 ± 12 910.451 ± 6
1 Flatness and parallelism between opposite surfaces.
Granite straight edges
Flatness, parallelism and straightness of measuring surfaces according DIN 874.
From length 630 mm with weight-saving
holes.
Material: granite.
Straight beveled edges.
Delivery in an aluminum case with a
declaration of conformity.
Item No. Dimensions Weight Straightness/ Parallelism Price
mm kg Flatness/µm µm EUR
Class 0: 2 ± 2.6 ± 13
402.135 400 x 60 x 25 138 ± 7.4 ± 37
402.1381,2 1600 x 250 x 80 210 ± 9 ± 45
402.1391,2 2000 x 300 x 100
Class 00: 2 ± 1.6 ± 8 C09.315.Prenar.20240422
910.452 400 x 60 x 25 6 ± 2.1 ± 10.5
910.453 630 x 100 x 35 27 ± 3 ± 15
910.4541 1000 x 160 x 50 138 ± 4.4 ± 22
910.4551,2 1600 x 250 x 80 210 ± 5.4 ± 27
910.4561,2 2000 x 300 x 100
1 Delivery ex Groningen, Netherlands.
2 Weight included package.
