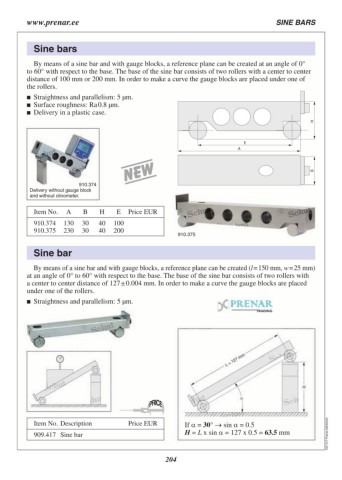

www.prenar.ee SINE BARS
Sine bars
By means of a sine bar and with gauge blocks, a reference plane can be created at an angle of 0°
to 60° with respect to the base. The base of the sine bar consists of two rollers with a center to center
distance of 100 mm or 200 mm. In order to make a curve the gauge blocks are placed under one of
the rollers.
Straightness and parallelism: 5 µm.
Surface roughness: Ra 0.8 µm.
Delivery in a plastic case.
E BH
A
910.374
Delivery without gauge block
and without clinometer.
Item No. A B H E Price EUR 910.375
910.374 130 30 40 100
910.375 230 30 40 200
Sine bar
By means of a sine bar and with gauge blocks, a reference plane can be created (l = 150 mm, w = 25 mm)
at an angle of 0° to 60° with respect to the base. The base of the sine bar consists of two rollers with
a center to center distance of 127 ± 0.004 mm. In order to make a curve the gauge blocks are placed
under one of the rollers.
Straightness and parallelism: 5 µm.
Item No. Description Price EUR If α = 30° → sin α = 0.5 C07.317.Prenar.20240422
909.417 Sine bar H = L x sin α = 127 x 0.5 = 63.5 mm
