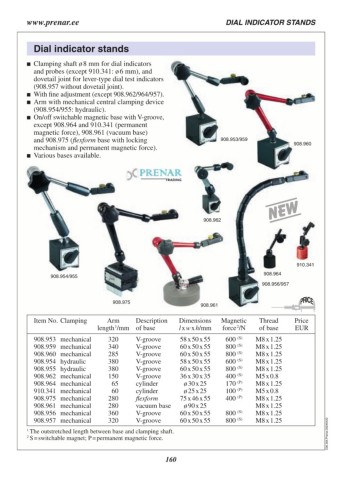

Dial indicator stands 908.953/959 908.960
Clamping shaft ø 8 mm for dial indicators
and probes (except 910.341: ø 6 mm), and
dovetail joint for lever-type dial test indicators
(908.957 without dovetail joint).
With fine adjustment (except 908.962/964/957).
Arm with mechanical central clamping device
(908.954/955: hydraulic).
On/off switchable magnetic base with V‑groove,
except 908.964 and 910.341 (permanent
magnetic force), 908.961 (vacuum base)
and 908.975 (flexform base with locking
mechanism and permanent magnetic force).
Various bases available.
908.962
910.341
908.954/955 908.964
908.956/957
908.975 908.961
Item No. Clamping Arm Description Dimensions Magnetic Thread Price
length 1/mm of base l x w x h/mm force 2/N of base EUR
908.953 mechanical 320 V‑groove 58 x 50 x 55 600 (S) M8 x 1.25 C06.304.Prenar.20240422
908.959 mechanical 340 V‑groove 60 x 50 x 55 800 (S) M8 x 1.25
908.960 mechanical 285 V‑groove 60 x 50 x 55 800 (S) M8 x 1.25
908.954 hydraulic 380 V‑groove 58 x 50 x 55 600 (S) M8 x 1.25
908.955 hydraulic 380 V‑groove 60 x 50 x 55 800 (S) M8 x 1.25
908.962 mechanical 150 V‑groove 36 x 30 x 35 400 (S) M5 x 0.8
908.964 mechanical cylinder ø 30 x 25 170 (P) M8 x 1.25
910.341 mechanical 65 cylinder ø 25 x 25 100 (P) M5 x 0.8
908.975 mechanical 60 flexform 75 x 46 x 55 400 (P) M8 x 1.25
908.961 mechanical 280 vacuum base ø 90 x 25 800 (S) M8 x 1.25
908.956 mechanical 280 V‑groove 60 x 50 x 55 800 (S) M8 x 1.25
908.957 mechanical 360 V‑groove 60 x 50 x 55 M8 x 1.25
320
1 The outstretched length between base and clamping shaft.
2 S = switchable magnet; P = permanent magnetic force.
