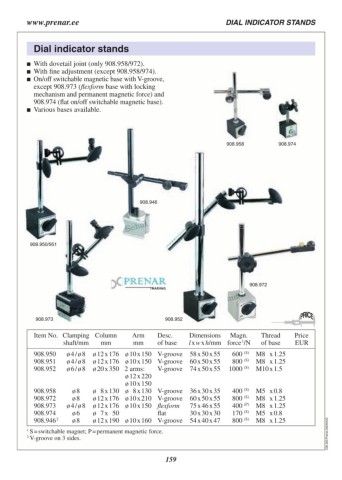

Page 159 - Schut Catalog
P. 159
www.prenar.ee DIAL INDICATOR STANDS
Dial indicator stands
With dovetail joint (only 908.958/972).
With fine adjustment (except 908.958/974).
On/off switchable magnetic base with V‑groove,
except 908.973 (flexform base with locking
mechanism and permanent magnetic force) and
908.974 (flat on/off switchable magnetic base).
Various bases available.
908.958 908.974
908.946
908.950/951
908.972
908.973 908.952
Item No. Clamping Column Arm Desc. Dimensions Magn. Thread Price
shaft/mm mm mm of base l x w x h/mm force 1/N of base EUR
908.950 ø 4 / ø 8 ø 12 x 176 ø 10 x 150 V‑groove 58 x 50 x 55 600 (S) M8 x 1.25 C06.303.Prenar.20240422
908.951 ø 4 / ø 8 ø 12 x 176 ø 10 x 150 V‑groove 60 x 50 x 55 800 (S) M8 x 1.25
908.952 ø 6 / ø 8 ø 20 x 350 2 arms: V‑groove 74 x 50 x 55 1000 (S) M10 x 1.5
ø 8 x 130 ø 12 x 220
ø 12 x 176 ø 10 x 150
ø 12 x 176 ø 8 x 130
908.958 ø 8 ø 7 x 50 ø 10 x 210 V‑groove 36 x 30 x 35 400 (S) M5 x 0.8
908.972 ø 8 ø 12 x 190 ø 10 x 150 V‑groove 60 x 50 x 55 800 (S) M8 x 1.25
908.973 ø 4 / ø 8 ø 10 x 160 flexform 75 x 46 x 55 400 (P) M8 x 1.25
908.974 ø 6 flat 30 x 30 x 30 170 (S) M5 x 0.8
908.946 2 ø 8 V‑groove 54 x 40 x 47 800 (S) M8 x 1.25
1 S = switchable magnet; P = permanent magnetic force.
2 V‑groove on 3 sides.
