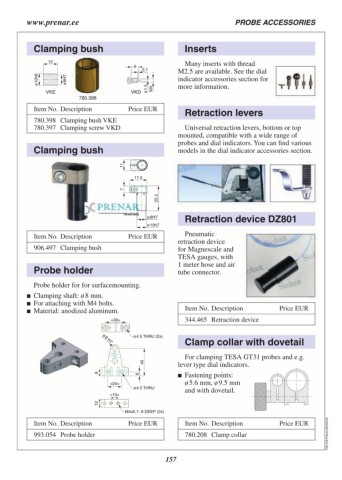

P. 157
www.prenar.ee PROBE ACCESSORIES
Clamping bush 6 0.7 Inserts
12 Many inserts with thread
M2.5 are available. See the dial
ø10h8 indicator accessories section for
ø8H7 more information.
ø1.5
M4 Retraction levers
VKE VKD
Universal retraction levers, bottom or top
780.398 Price EUR mounted, compatible with a wide range of
probes and dial indicators. You can find various
Item No. Description models in the dial indicator accessories section.
780.398 Clamping bush VKE
780.397 Clamping screw VKD
Clamping bush
7 1117.5
25.3
Item No. Description ø8H7 Retraction device DZ801
906.497 Clamping bush ø10h7
Pneumatic
Price EUR retraction device
for Magnescale and
Probe holder TESA gauges, with
1 meter hose and air
Probe holder for for surfacemounting. tube connector.
Clamping shaft: ø 8 mm.
For attaching with M4 bolts. Item No. Description Price EUR
Material: anodized aluminum. 344.465 Retraction device
=30=
ø8 H7 ø4.5 THRU (2x) Clamp collar with dovetail
12 8=20=ø4.5 THRU For clamping TESA GT31 probes and e.g.
6=10= lever type dial indicators.
40 Fastening points:
ø 5.6 mm, ø 9.5 mm
and with dovetail.
Item No. Description M4x0.7 - 8 DEEP (2x) Item No. Description Price EUR C05.316.Prenar.20240422
993.054 Probe holder 780.208 Clamp collar
Price EUR
157
