www.mtsranders.dk                                                            MICROSCOPES

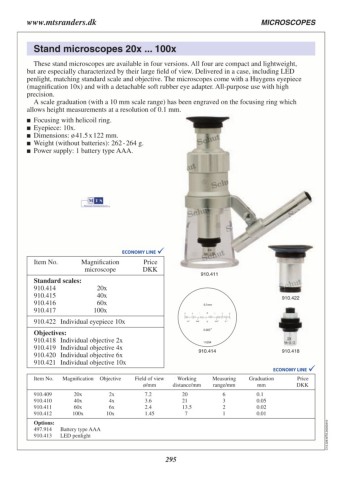

  Stand microscopes 20x ... 100x

  These stand microscopes are available in four ver­sions. All four are compact and lightweight,
but are especially characterized by their large field of view. Delivered in a case, including LED
penlight, matching standard scale and objective. The microscopes come with a Huygens eyepiece
(magnification 10x) and with a detachable soft rubber eye adapter. All-purpose use with high
precision.

  A scale graduation (with a 10 mm scale range) has been engraved on the focusing ring which
allows height measurements at a resolution of 0.1 mm.
	 Focusing with helicoil ring.
	 Eyepiece: 10x.
	 Dimensions: ø 41.5 x 122 mm.
	 Weight (without batteries): 262 - 264 g.
	 Power supply: 1 battery type AAA.

Item No.  Magnification 	            Price
           microscope                DKK
                                                      910.411
Standard scales:   20x                               910.414                                 910.422
910.414 	          40x                                                                       910.418
910.415 	          60x
910.416 	         100x
910.417

910.422 Individual eyepiece 10x

Objectives:
910.418 Individual objective 2x
910.419 Individual objective 4x
910.420 Individual objective 6x
910.421 Individual objective 10x

Item No. 	 Magnification	 Objective  Field of view 	 Working 	     Measuring 	 Graduation 	  Price
                                                                                             DKK
                                     ø/mm    distance/mm           range/mm  mm

910.409   	 20x	              2x     	 7.2   	 20               	  6         	 0.1
910.410   	 40x	              4x     	 3.6   	 21               	  3         	 0.05
910.411   	 60x	              6x     	 2.4   	 13.5             	  2         	 0.02
910.412   	 100x	           10x      	 1.45  	7                 	  1         	 0.01

Options:  Battery type AAA                                                                            C13.328.MTS.20250410
497.914   LED penlight
910.413
