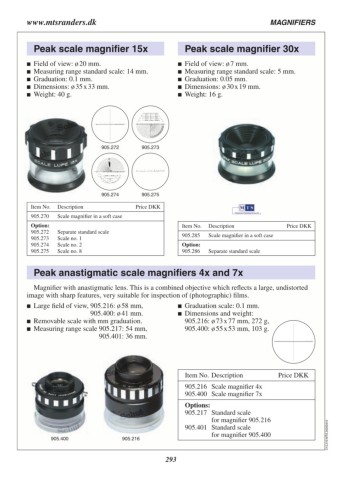

P. 293

www.mtsranders.dk                                                                                      MAGNIFIERS

  Peak scale magnifier 15x                                         Peak scale magnifier 30x

	 Field of view: ø 20 mm.                                       	 Field of view: ø 7 mm.
	 Measuring range standard scale: 14 mm.                        	 Measuring range standard scale: 5 mm.
	 Graduation: 0.1 mm.                                           	 Graduation: 0.05 mm.
	 Dimensions: ø 35 x 33 mm.                                     	 Dimensions: ø 30 x 19 mm.
	 Weight: 40 g.                                                 	 Weight: 16 g.

                   	 905.272	                      905.273

                   	 905.274	                905.275
                                          Price DKK
Item No.  Description
          Scale magnifier in a soft case                         Item No.  Description                     Price DKK
905.270                                                                    Scale magnifier in a soft case
          Separate standard scale                                905.285
Option:   Scale no. 1                                                      Separate standard scale
905.272   Scale no. 2                                            Option:
905.273   Scale no. 8                                            905.286
905.274
905.275

Peak anastigmatic scale magnifiers 4x and 7x

  Magnifier with anastigmatic lens. This is a combined objective which reflects a large, undistorted
image with sharp features, very suitable for inspection of (photographic) films.

	 Large field of view, 905.216: ø 58 mm,                        	 Graduation scale: 0.1 mm.
  	 905.400: ø 41 mm.                                            	 Dimensions and weight:

	 Removable scale with mm graduation.                             905.216: ø 73 x 77 mm, 272 g,
	 Measuring range scale 905.217: 54 mm,                           905.400: ø 55 x 53 mm, 103 g.

  	 905.401: 36 mm.

                                                                 Item No. Description                      Price DKK
                                                                 905.216 Scale magnifier 4x
          905.400                         905.216                905.400 Scale magnifier 7x                           C13.210.MTS.20250410
                                                                 Options:
                                                                 905.217 Standard scale

                                                                            for magnifier 905.216
                                                                 905.401 Standard scale

                                                                            for magnifier 905.400

                                                            293
