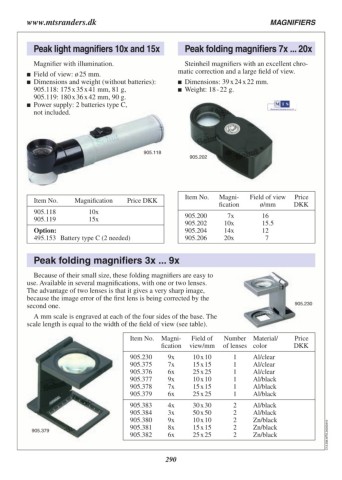

Page 290 - Schut Catalog
P. 290

www.mtsranders.dk                                                                  MAGNIFIERS

  Peak light magnifiers 10x and 15x                     Peak folding magnifiers 7x ... 20x

  Magnifier with illumination.                          Steinheil magnifiers with an excellent chro­
	 Field of view: ø 25 mm.                            matic correction and a large field of view.
	 Dimensions and weight (without batteries): 	       	 Dimensions: 39 x 24 x 22 mm.
                                                      	 Weight: 18 - 22 g.
  905.118: 175 x 35 x 41 mm, 81 g,
  905.119: 180 x 36 x 42 mm, 90 g.
	 Power supply: 2 batteries type C,
  not included.

                                   905.118            905.202

Item No.   Magnification Price DKK                    Item No. Magni-	 Field of view 	 Price
                                                                      fication  ø/mm      DKK
905.118 	  10x
905.119 	  15x                                        905.200 	 7x 	 16
                                                      905.202 	 10x 	 15.5
Option:                                               905.204 	 14x 	 12
495.153 Battery type C (2 needed)                     905.206 	 20x 	           7

Peak folding magnifiers 3x ... 9x

  Because of their small size, these folding magnifiers are easy to                       905.230
use. Available in several magnifications, with one or two lenses.
The advantage of two lenses is that it gives a very sharp image,                          Price
because the image error of the first lens is being corrected by the                       DKK
second one.

  A mm scale is engraved at each of the four sides of the base. The
scale length is equal to the width of the field of view (see table).

                   Item No. Magni-	 Field of 	 Number 	 Material/
                                fication view/mm of lenses color

                   905.230 	                     9x   	 10	x	10       	  1      Al/clear
                   905.375 	                     7x   	 15	x	15       	  1      Al/clear
                   905.376 	                     6x   	 25	x	25       	  1      Al/clear
                   905.377 	                     9x   	 10	x	10       	  1      Al/black
                   905.378 	                     7x   	 15	x	15       	  1      Al/black
                   905.379 	                     6x   	 25	x	25       	  1      Al/black

905.379            905.383 	                     4x   	 30	x	30       	  2      Al/black              C13.206.MTS.20250410
                   905.384 	                     3x   	 50	x	50       	  2      Al/black
                   905.380 	                     9x   	 10	x	10       	  2      Zn/black
                   905.381 	                     8x   	 15	x	15       	  2      Zn/black
                   905.382 	                     6x   	 25	x	25       	  2      Zn/black
