P. 276

www.mtsranders.dk                                                      GAUGES

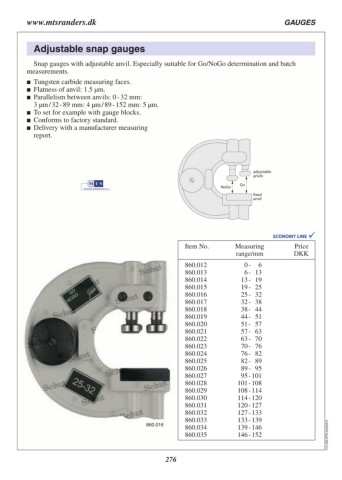

  Adjustable snap gauges

  Snap gauges with adjustable anvil. Especially suitable for Go/NoGo determination and batch
measurements.
	 Tungsten carbide measuring faces.
	 Flatness of anvil: 1.5 µm.
	 Parallelism between anvils: 0 - 32 mm:

  3 µm / 32 - 89 mm: 4 µm / 89 - 152 mm: 5 µm.
	 To set for example with gauge blocks.
	 Conforms to factory standard.
	 Delivery with a manufacturer measuring

  report.

                                            NoGo           adjustable
                                                           anvils
                                                  Go
                                                           fixed
                                                           anvil

                                 Item No.         Measuring 	          Price
                                 860.012 	        range/mm             DKK
                                 860.013
                   860.016       860.014 	            0	-	 6                                  C12.309.MTS.20250410
                                 860.015 	            6	-	 13
                                 860.016 	          13	-	 19
                                 860.017 	          19	-	 25
                                 860.018 	          25	-	 32
                                 860.019 	          32	-	 38
                                 860.020 	          38	-	 44
                                 860.021 	          44	-	 51
                                 860.022 	          51	-	 57
                                 860.023 	          57	-	 63
                                 860.024 	          63	-	 70
                                 860.025 	          70	-	 76
                                 860.026 	          76	-	 82
                                 860.027 	          82	-	 89
                                 860.028 	          89	-	 95
                                 860.029 	          95	-	101
                                 860.030 	         101	-	108
                                 860.031 	         108	-	114
                                 860.032 	         114	-	120
                                 860.033 	         120	-	127
                                 860.034 	         127	-	133
                                 860.035 	         133	-	139
                                                   139	-	146
                                                   146	-	152
