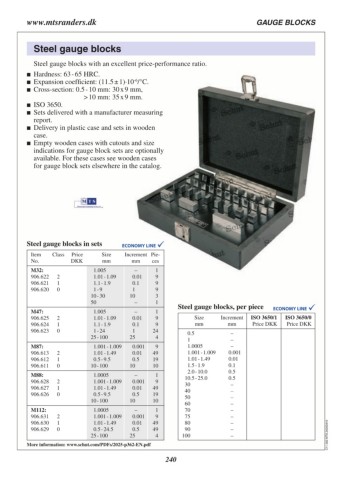

Page 240 - Schut Catalog
P. 240

www.mtsranders.dk                                                                              GAUGE BLOCKS

  Steel gauge blocks

  Steel gauge blocks with an excellent price-performance ratio.
	 Hardness: 63 - 65 HRC.
	 Expansion coefficient: (11.5 ± 1)·10‑6/°C.
	 Cross-section: 0.5 - 10 mm: 30 x 9 mm,

  	    > 10 mm: 	35 x 9 mm.
	 ISO 3650.
	 Sets delivered with a manufacturer measuring

  report.
	 Delivery in plastic case and sets in wooden

  case.
	 Empty wooden cases with cutouts and size

  indications for gauge block sets are optionally
  available. For these cases see wooden cases
  for gauge block sets elsewhere in the catalog.

Steel gauge blocks in sets

 Item         Class Price    Size 	         Increment	 Pie-
No.                     DKK  mm                mm ces

 M32: 	       2                1.005        	 – 	1
906.622 	     1                1.01 - 1.09  	   0.01 	 9
906.621 	     0                1.1 - 1.9    	 0.1 	 9
906.620 	                      1 - 9        	 1   	 	 9
                             10 - 30        	 10    	 	 3          Steel gauge blocks, per piece
           	                 50             	 – 	1


 M47: 	       2                1.005        	 – 	1                 Size 	            Increment	 ISO 3650/1  ISO 3650/0
906.625 	     1                1.01 - 1.09  	   0.01 	 9           mm                   mm Price DKK        Price DKK
906.624 	     0                1.1 - 1.9    	 0.1 	 9
906.623 	                      1 - 24       	 1   	 	 24              0.5                –
                             25 - 100       	 25    	 	 4             1                  –
           	                                                          1.0005             –
                                                                      1.001 - 1.009     0.001
 M87: 	                        1.001 - 1.009 	    0.001 	 9           1.01 - 1.49       0.01
906.613 	                                                             1.5 - 1.9         0.1
906.612 	     2                1.01 - 1.49 	   0.01 	 49              2.0 - 10.0        0.5
906.611 	     1                                                      10.5 - 25.0        0.5
              0                0.5 - 9.5 	 0.5 	 19                  30                  –
                                                                     40                  –
                             10 - 100       	 10    	 	 10           50                  –
                                                                     60                  –
 M88: 	                        1.0005       	 – 	1                   70                  –
906.628 	                                                            75                  –
906.627 	     2                1.001 - 1.009 	    0.001 	 9          80                  –
906.626 	     1                                                      90                  –
              0                1.01 - 1.49 	   0.01 	 49           100                   –

                               0.5 - 9.5 	 0.5 	 19

                             10 - 100       	 10    	 	 10

 M112: 	                       1.0005       	 – 	1
906.631
906.630 	     2                1.001 - 1.009 	    0.001 	 9
906.629 	     1
              0                1.01 - 1.49 	   0.01 	 49                                                                C11.302.MTS.20250410

                               0.5 - 24.5 	 0.5 	 49

                             25 - 100       	 25    	 	 4

More information: www.schut.com/PDFs/2025-p362-EN.pdf
