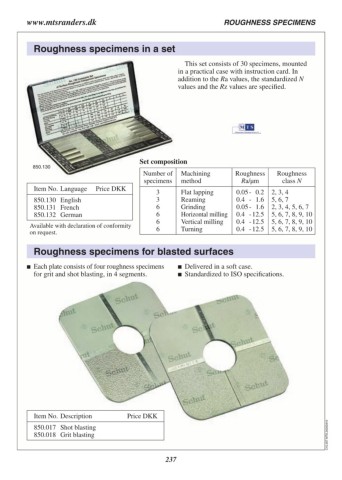

P. 237
www.mtsranders.dk ROUGHNESS SPECIMENS
Roughness specimens in a set
This set consists of 30 specimens, mounted
in a practical case with instruction card. In
addition to the Ra values, the standardized N
values and the Rz values are specified.
850.130 Set composition
Item No. Language Price DKK Number of Machining Roughness Roughness
850.130 English specimens method Ra/µm class N
850.131 French
850.132 German 3 Flat lapping 0.05 - 0.2 2, 3, 4
Available with declaration of conformity 3 Reaming 0.4 - 1.6 5, 6, 7
on request. 6 Grinding 0.05 - 1.6 2, 3, 4, 5, 6, 7
6 Horizontal milling 0.4 - 12.5 5, 6, 7, 8, 9, 10
6 Vertical milling 0.4 - 12.5 5, 6, 7, 8, 9, 10
6 Turning 0.4 - 12.5 5, 6, 7, 8, 9, 10
Roughness specimens for blasted surfaces
Each plate consists of four roughness specimens Delivered in a soft case.
for grit and shot blasting, in 4 segments. Standardized to ISO specifications.
Item No. Description Price DKK C10.207.MTS.20250410
850.017 Shot blasting 237
850.018 Grit blasting
