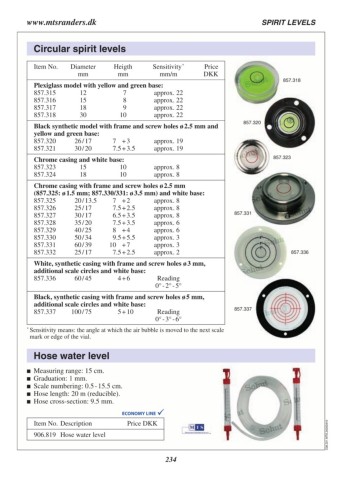

Page 234 - Schut Catalog
P. 234
www.mtsranders.dk SPIRIT LEVELS
Circular spirit levels
Item No. Diameter Heigth Sensitivity * Price
mm mm mm/m DKK
857.318
Plexiglass model with yellow and green base: 857.323
857.315 12 7 approx. 22
857.316 15 8 approx. 22 857.336
857.317 18 9 approx. 22
857.318 30 10 approx. 22
Black synthetic model with frame and screw holes ø 2.5 mm and 857.320
yellow and green base: 857.331
857.320 26 / 17 7 + 3 approx. 19 857.337
857.321 30 / 20 7.5 + 3.5 approx. 19
Chrome casing and white base:
857.323 15 10 approx. 8
857.324 18 10 approx. 8
Chrome casing with frame and screw holes ø 2.5 mm
(857.325: ø 1.5 mm; 857.330/331: ø 3.5 mm) and white base:
857.325 20 / 13.5 7 + 2 approx. 8
857.326 25 / 17 7.5 + 2.5 approx. 8
857.327 30 / 17 6.5 + 3.5 approx. 8
857.328 35 / 20 7.5 + 3.5 approx. 6
857.329 40 / 25 8 + 4 approx. 6
857.330 50 / 34 9.5 + 5.5 approx. 3
857.331 60 / 39 10 + 7 approx. 3
857.332 25 / 17 7.5 + 2.5 approx. 2
White, synthetic casing with frame and screw holes ø 3 mm,
additional scale circles and white base:
857.336 60 / 45 4 + 6 Reading
0° - 2° - 5°
Black, synthetic casing with frame and screw holes ø 5 mm,
additional scale circles and white base:
857.337 100 / 75 5 + 10 Reading
0° - 3° - 6°
* Sensitivity means: the angle at which the air bubble is moved to the next scale
mark or edge of the vial.
Hose water level
Measuring range: 15 cm.
Graduation: 1 mm.
Scale numbering: 0.5 - 15.5 cm.
Hose length: 20 m (reducible).
Hose cross-section: 9.5 mm.
Item No. Description Price DKK C08.221.MTS.20250410
906.819 Hose water level
234
