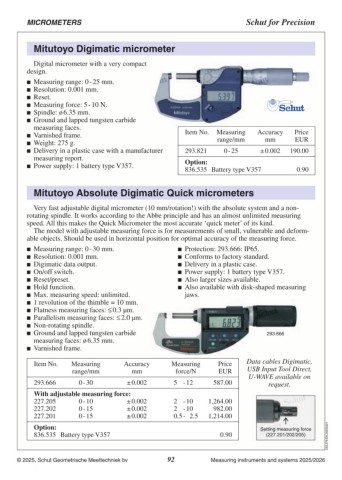

Page 92 - Schut Catalog
P. 92
MICROMETERS Schut for Precision
Mitutoyo Digimatic micrometer Item No. Measuring Accuracy Price
range/mm mm EUR
Digital micrometer with a very compact
design. 293.821 0 - 25 ± 0.002 190.00
Measuring range: 0 - 25 mm.
Resolution: 0.001 mm. Option: 0.90
Reset. 836.535 Battery type V357
Measuring force: 5 - 10 N.
Spindle: ø 6.35 mm.
Ground and lapped tungsten carbide
measuring faces.
Varnished frame.
Weight: 275 g.
Delivery in a plastic case with a manufacturer
measuring report.
Power supply: 1 battery type V357.
Mitutoyo Absolute Digimatic Quick micrometers
Very fast adjustable digital micrometer (10 mm/rotation!) with the absolute system and a non-
rotating spindle. It works according to the Abbe principle and has an almost unlimited measuring
speed. All this makes the Quick Micrometer the most accurate ‘quick meter’ of its kind.
The model with adjustable measuring force is for measurements of small, vulnerable and deform
able objects. Should be used in horizontal position for optimal accuracy of the measuring force.
Measuring range: 0 - 30 mm. Protection: 293.666: IP65.
Resolution: 0.001 mm. Conforms to factory standard.
Digimatic data output. Delivery in a plastic case.
On/off switch. Power supply: 1 battery type V357.
Reset/preset. Also larger sizes available.
Hold function. Also available with disk-shaped measuring
Max. measuring speed: unlimited.
1 revolution of the thimble = 10 mm. jaws.
Flatness measuring faces: ≤ 0.3 µm.
Parallelism measuring faces: ≤ 2.0 µm. 293.666
Non-rotating spindle.
Ground and lapped tungsten carbide
measuring faces: ø 6.35 mm.
Varnished frame.
Item No. Measuring Accuracy Measuring Price Data cables Digimatic,
range/mm mm force/N EUR USB Input Tool Direct,
587.00 U-WAVE available on
293.666 0 - 30 ± 0.002 5 - 12
request.
With adjustable measuring force:
227.205 0 - 10 ± 0.002 2 - 10 1,264.00
227.202 0 - 15 ± 0.002 2 - 10 982.00
227.201 0 - 15 ± 0.002 0.5 - 2.5 1,214.00 Setting measuring force
(227.201/202/205)
Option: 0.90 C03.279.EN.20250321
836.535 Battery type V357
© 2025, Schut Geometrische Meettechniek bv 92 Measuring instruments and systems 2025/2026
