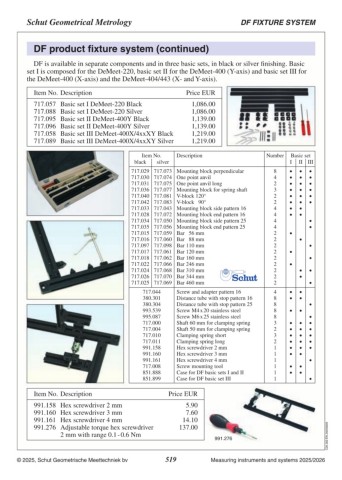

P. 519
Schut Geometrical Metrology DF FIXTURE SYSTEM
DF product fixture system
DF is a new fixture system developed and produced by Schut and designed for building 3D product
fixtures, particularly for optical measurements.
Solid product positioning is essential for accurate measurements. DF is very easy to mount with
single-screw couplings to build fixtures with a high repeatability and to realize a short lead-time for
measuring jobs.
DF consists of a full range of fixture components: bars, connection components and fixing compo
nents. Produced from extruded or machined AlMgSi1 aluminum with either a black or silver anodized
finishing. The black anodized version avoids light reflections. The silver components can be applied
when light reflections from the fixture are required.
DF is a universal fixture system and can be
mounted on any type of measuring machine.
With special couplings the system is fully
compatible with the measuring tables of the
DeMeet video and multi-sensor coordinate
measuring machines.
Download the C26.301.EN.20250106
brochure from
Schut.com
