ALUFIX FIXTURE SYSTEM Schut for Precision

Alufix fixture system Some advantages of the Alufix system:
– Alufix can save time and money, because the
Alufix is a flexible fixture system made of
high-tensile aluminum, with which, due to fixtures are quick and easy to assemble.
the high production accuracy and ease of use, – All components are re-usable.
fixture solutions can be created in a short time. – Aluminum has a low weight and is corrosion
Applications of Alufix are for example:
– Product fixtures for coordinate measuring free.
– High dimensional accuracy.
machines or other measuring systems such
as probe/dial indicator measuring systems or The basis consists of a base plate or a
height gauges. “quader”. With different sorts of connecting
– Product fixtures for various mounting elements you can fix other basic elements,
purposes. clamping springs, vices, claw plates, prisms and
– Product fixtures for various production various other Alufix elements. For many of the
applications like welding. basic elements there is also a lighter ECO or
The great diversity of accessories enables a Light version available with a favourable price-
fixture for almost any product. E.g. Alufix is performance ratio. Components can be supplied
used in aero­space, plastics and car manufacturing black anodized as an option for avoiding
industries. light reflections with for example optical
measurements.
Example of an Alufix basic set: 438 pieces,
delivery with workstation. Alufix is available in several base sizes.
Alufix 16 is the smallest version for fixturing
small, light objects, Alufix 25, Alufix 40,
Alufix 50 and the Fixinspect system.

The center distances (c) of the bores are
indicated by the type number, for example
25 mm for Alufix 25. The diameter (d) of
the bores is half of this number, 12.5H7.

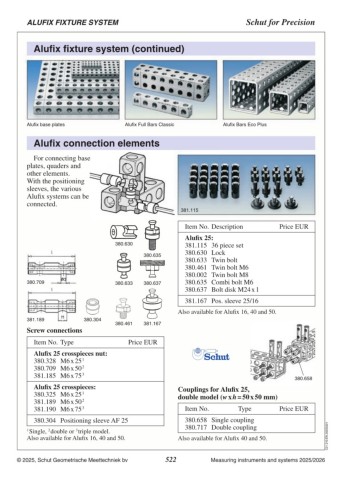

The various versions can be connected with
positioning sleeves.

All Alufix parts are separately available, and
can be assembled to create a product specific
fixture. There are also sets of a more general
composition.

Center distance Bore diameter Fixtures for height
Alufix 16 c/mm d/mm gauges can be rotated
Alufix 25 by 90° allowing 2
Alufix 40 16 8 coordinates to be C21.202.EN.20240626
Alufix 50 25 12.5 measured.
40 20
50 25 Detailed
information
