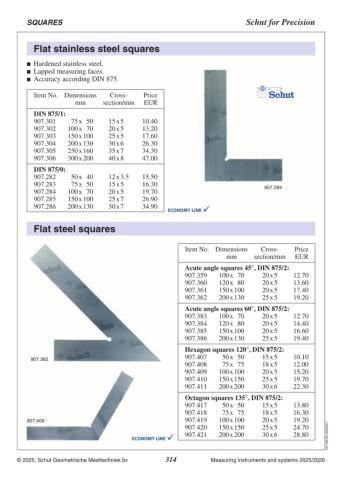

Page 314 - Schut Catalog

SQUARES Schut for Precision

Flat stainless steel squares

 Hardened stainless steel.
 Lapped measuring faces.
 Accuracy according DIN 875.

Item No. Dimensions Cross- Price 907.284
mm section/mm EUR
9.50
DIN 875/1: 12.00
907.301 75 x 50 15 x 5 16.00
907.302 100 x 70 20 x 5 23.90
907.303 150 x 100 25 x 5 31.20
907.304 200 x 130 30 x 6 42.00
907.305 250 x 160 35 x 7 14.10
907.306 300 x 200 40 x 8 14.80
DIN 875/0: 17.90
907.282 50 x 40 12 x 3.5 24.50
907.283 75 x 50 15 x 5 31.80
907.284 100 x 70 20 x 5
907.285 150 x 100 25 x 7
907.286 200 x 130 30 x 7

Flat steel squares

Item No. Dimensions Cross- Price
mm section/mm EUR

Acute angle squares 45°, DIN 875/2:
907.359 100 x 70 20 x 5 11.50
907.360 120 x 80 20 x 5 12.30
907.361 150 x 100 20 x 5 15.80
907.362 200 x 130 25 x 5 17.40

Acute angle squares 60°, DIN 875/2:
907.383 100 x 70 20 x 5 11.50
907.384 120 x 80 20 x 5 13.10
907.385 150 x 100 20 x 5 15.10
907.386 200 x 130 25 x 5 17.60

907.362 Hexagon squares 120°, DIN 875/2: 9.20
907.409 907.407 50 x 50 15 x 5 11.00
907.408 75 x 75 18 x 5 13.90
907.409 100 x 100 20 x 5 17.90
907.410 150 x 150 25 x 5 20.30
907.411 200 x 200 30 x 6

Octagon squares 135°, DIN 875/2: 12.60 C07.306.EN.20240626
907.417 50 x 50 15 x 5 14.80
907.418 75 x 75 18 x 5 17.40
907.419 100 x 100 20 x 5 22.50
907.420 150 x 150 25 x 5 26.20
907.421 200 x 200 30 x 6
